Views: 0 Author: Site Editor Publish Time: 2026-05-20 Origin: Site
Precision machining constantly demands sharp tooling. Worn cutters force your CNC spindles to work much harder. They generate destructive excess heat. They quickly destroy tight dimensional tolerances. An end mill re-sharpening machine directly solves this persistent shop floor problem. This precision industrial equipment restores the cutting edges, flutes, and tip geometry of degraded tools. You rely on sharp end mills for flawless surface finishes. You need them for stable spindle loads.
As cutters inevitably wear down, shop managers face a critical choice. You must decide whether to continually buy new tooling. Alternatively, you might rely on third-party regrinding services. You could also bring the entire restoration process in-house. Investing in your own grinding capability can dramatically shrink your monthly tooling budget.
This guide breaks down exactly how these machines operate. You will learn how to evaluate different solution categories. We will also explore the real-world economics of grinding your own solid carbide and steel tools. By understanding these variables, you can make an informed capital equipment decision.
An end mill re-sharpening machine directly reduces tooling procurement costs by extending the lifecycle of high-speed steel (HSS) and carbide cutters.
Equipment ranges from manual, single-purpose benchtop units to multi-axis CNC tool resharpening equipment.
The primary justification for purchase is the crossover point between monthly tooling spend, outsourcing lead times, and the upfront capital expenditure of the machine.
Successful implementation requires aligning the machine's capabilities (wheel type, diameter range, flute count) with your specific shop floor requirements and operator skill levels.
Restoring a cutting tool requires exacting precision. Operators cannot simply grind away material at random. They must re-establish the exact geometries originally defined by tool manufacturers. Understanding this mechanical process ensures better tool performance.
The core operation revolves around controlled material removal. Worn edges lose their bite. They cause harmful rubbing instead of clean shearing. An end mill sharpening machine utilizes guided abrasive wheels to grind away this damaged edge. The process first re-establishes the primary clearance angle. This angle sits directly behind the cutting edge. Typically, manufacturers set this around 5 to 7 degrees. Next, operators grind the secondary clearance angle. This provides necessary relief space. It ensures the tool heel does not drag against the raw workpiece. Finally, operators regrind the gash angles at the tool center. Proper gashing ensures efficient chip evacuation during aggressive plunging operations.
You must match your grinding wheel to your tool material. Using the wrong abrasive ruins both the wheel and the expensive cutter. Experienced machinists know this rule well.
CBN (Cubic Boron Nitride): These wheels suit High-Speed Steel (HSS) and Cobalt end mills perfectly. CBN maintains excellent thermal stability. It prevents severe heat damage to steel cutters during heavy material removal.
SDC (Synthetic Diamond): Solid carbide end mills absolutely require diamond abrasives. Carbide presents an incredibly hard substrate. Only SDC wheels possess the necessary hardness to slice through solid carbide without suffering rapid structural breakdown.
Precision grinding requires perfect centering. A dedicated end mill grinder uses sophisticated collet systems to achieve this alignment. Most modern machines rely on standard ER collet systems to securely hold the tool shank. These collets ensure strict concentricity. They virtually eliminate runout during the grinding process. If a tool wobbles even a thousandth of an inch, the new cutting edges will cut unevenly. This induces chatter when the tool returns to the CNC mill. High-quality collet chucks lock the tool perfectly parallel to the abrasive wheel. This structural rigidity ensures every single flute receives identical treatment.
Machine shops constantly debate the merits of grinding in-house. Outsourcing feels easier initially. However, it carries significant hidden costs. Analyzing the specific trade-offs helps clarify the right path forward.
Let us analyze the actual break-even point. Purchasing a brand-new high-performance carbide end mill often costs between $40 and $150. Sending that dull tool to a third-party regrind facility usually incurs a $15 to $30 fee per tool. When you operate an in-house machine, the cost structure drops drastically. Factoring in equipment amortization and brief operator time, in-house grinding often costs mere pennies per tool. Consider a shop consuming fifty end mills per week. The break-even horizon shrinks rapidly under high volumes. You keep more capital inside your business.
Outsourcing inevitably creates frustrating lag times. You package dull tools. You ship them out. You wait weeks for their return. An in-house setup completely eliminates these shipping lead times. Operators can pull a dull cutter from a machine block. They sharpen it immediately. They return it to the spindle minutes later. This agility severely mitigates supply chain disruptions. You never have to pause a critical production job simply waiting for a delivery truck.
We must acknowledge realistic quality trade-offs. In-house manual grinding heavily relies on human operators. This introduces slight variance between different batches. You might see a fraction of a degree difference in specific relief angles. In contrast, automated third-party facilities use laser-measured CNC regrinding centers. They practically guarantee absolute geometric perfection. You must weigh your specific tolerance requirements. Many standard roughing operations do not require laser-perfect factory edges. Manual regrinds handle everyday slotting and profiling tasks flawlessly.
Not all grinding tasks require the same machinery footprint. Manufacturers offer various tiers of tool resharpening equipment. You must match the equipment to specific production volumes and complexities.

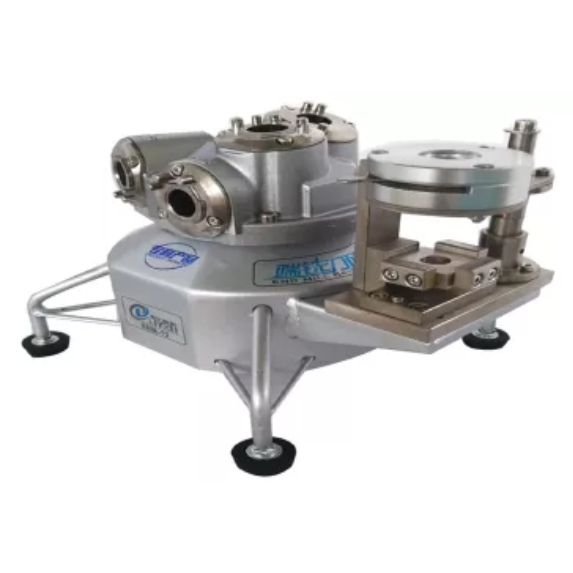

These compact units dominate many small shops. They feature fixed grinding ports and straightforward operation.
Best for: Small to medium job shops processing standard 2, 3, and 4-flute end mills.
Limitations: They rely heavily on operator consistency. They also struggle to reproduce complex variable helix or variable pitch geometries.
These robust units add mechanical assist mechanisms to the grinding stroke. They reduce operator fatigue.
Best for: Standardized high-volume sharpening. They utilize fixed angle settings to speed up processing. They remove some human error from the grinding stroke.

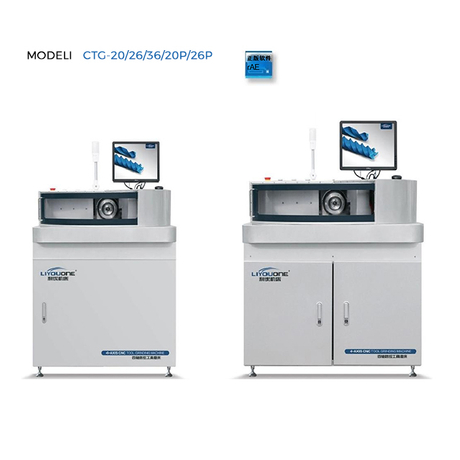

These massive machines represent the absolute pinnacle of tool restoration. They utilize programmable software and automated part handling.
Best for: High-volume production environments. They excel at aerospace tooling, medical cutting tools, and complex geometries like corner radius and ball nose profiles.
Advantages: They offer unmatched repeatability. You can utilize programmatic recipe storage for thousands of unique tools. They require minimal operator intervention.
Equipment Comparison Summary
Machine Type | Ideal Shop Size | Geometry Capability | Operator Skill Needed |
|---|---|---|---|
Manual Benchtop | Small / Medium | Basic flat bottom (2, 3, 4 flute) | Moderate |
Semi-Automatic | Medium / Large | Fixed angles, high volume standard | Low |
Multi-Axis CNC | Large / Production | Ball nose, variable helix, custom | High (Programming) |
Choosing the right unit requires careful assessment. You need to match the machine specifications to your actual tooling inventory. A mismatch here wastes capital and frustrates operators.
Always check the machine capacity limits. Ensure the collet set and motor torque can handle your minimum and maximum shank sizes. Small benchtop units might only handle sizes from 1/8" up to 1/2". Heavier equipment can readily process 1" shanks or larger. Processing large tools requires higher horsepower. Weak motors will stall against the abrasive wheel. This ruins the grinding finish.
Verify compatibility with your most common cutters. Standard machines handle 2, 3, and 4-flute end mills out of the box. However, high-efficiency milling often employs 5 or 6-flute cutters. You must confirm the indexing mechanism supports these higher flute counts. Buying a machine unable to index your primary roughing tools serves no purpose.
Assess what specific tip profiles the machine can restore. Basic units typically handle flat end mills only. They cut standard square bottoms. Advanced machining often requires ball nose, corner radius, and taper end mills. Grinding these complex curves demands specialized attachments. Sometimes it requires fully automated CNC kinematics. Review your part drawings to see which tool geometries dominate your workflow.
Evaluate your shop floor space carefully. Consider the phase power requirements. Small grinders often run on standard 110V wall outlets. Industrial machines demand 220V or 3-phase power. Additionally, check for coolant system integration. Wet grinding prevents heat damage. However, it requires fluid reservoirs and filtration systems. Dry grinding is simpler but generates airborne abrasive dust.
Purchasing the hardware only solves part of the equation. Shop managers must plan for operational hurdles. Expect a brief transition period as operators learn the new system.
Manual end mill re-sharpening machines require distinct tactile sensitivity. Operators must learn how much pressure to apply. They must feel when the tool contacts the wheel properly. Acknowledge the risk of scrapped tools during this learning curve. Operators will likely ruin a few cutters before mastering the grinding rhythm. Best practice dictates creating a standard operating procedure (SOP) to standardize the technique across shifts.
Abrasive wheels do not last forever. Address this maintenance reality early. Diamond and CBN wheels wear down over time. They require regular dressing to expose fresh abrasive grains. Eventually, they require complete replacement. You must factor wheel consumption into your long-term equipment maintenance budget. Failing to replace glazed wheels leads to severe tool burning.
Sharpening represents only half the process. You must verify the final results. Shops must invest in optical comparators or tool presetters. These critical tools verify the newly cut geometry. Because regrinding shortens the tool and slightly reduces its diameter, operators must update CNC tool offsets. Failing to update these machine offsets directly results in scrapped production parts.
Standard regrinding completely removes factory coatings from the tool tip. Coatings like TiAlN or AlTiN disappear. The newly sharpened edge will expose bare carbide or bare steel. You must evaluate if running uncoated tools affects your operations. Uncoated tools generate more friction. You may need to proactively reduce your specific feeds and speeds to compensate for the lost thermal protection.
Follow a structured approach to narrow down your options. Avoid buying a machine based on marketing claims alone. Let your shop data drive the final decision.
Conduct a Tooling Audit: Analyze the last six months of your purchasing data. Identify the most frequently replaced diameters, tool materials, and flute counts. Buy a machine optimized specifically for your highest-volume scrap items.
Request Sample Grinds: Do not buy blind. Before purchasing, send a batch of dull end mills to the equipment manufacturer. Ask them to regrind the tools. Verify the surface finish and edge prep quality produced by their specific machine. Run these sharpened tools in your CNC to test their real-world performance.
Evaluate Vendor Support: Prioritize manufacturers offering comprehensive operational training. Ensure they keep replacement grinding wheels in stock locally. Check their reputation for responsive technical support. Reliable vendors keep your internal sharpening program running smoothly year after year.
An end mill re-sharpening machine serves as a highly strategic asset for modern machine shops. It helps managers aggressively control operational costs. It sharply reduces reliance on external supply chains. Restoring your own cutters transforms recurring tooling expenses into a manageable internal process. We recommend starting with a hard data analysis. Review your monthly tooling waste before committing to a manual benchtop unit or a massive multi-axis CNC grinder.
Take action today. Walk out to your shop floor. Audit your scrap bin. Count the dull carbide sitting unused in drawers. Calculate your potential return on investment based on your current cutting tool expenditures. You might discover the right grinding equipment pays for itself in just a few short months.
A: Typically 3 to 5 times. It depends heavily on the tool diameter and the extent of the edge wear. Minor rubbing allows for more frequent regrinding. Severe chipping or heavy flute damage drastically reduces the number of viable regrinds. You must measure the remaining flute depth before attempting another sharpening cycle.
A: Usually, you use the exact same machine. However, you must swap the grinding wheel. You install CBN (Cubic Boron Nitride) wheels for HSS or cobalt tools. You must use synthetic Diamond wheels for solid carbide cutters. Running carbide on a CBN wheel will instantly destroy the abrasive surface.
A: Basic manual machines cannot perform this complex task. They only handle flat bottom cutters. Ball nose and corner radius geometries feature complex curves. They require specialized radius fixtures, motorized attachments, or higher-end multi-axis CNC machines to achieve the correct sweeping motion.
A: It typically takes 1 to 3 minutes per tool on a standard benchtop unit. The exact duration depends on the tool size, flute count, and the severity of edge damage. Operators can often process a batch of twenty simple 4-flute end mills in under an hour once they establish a rhythm.
