Views: 0 Author: Site Editor Publish Time: 2026-05-18 Origin: Site

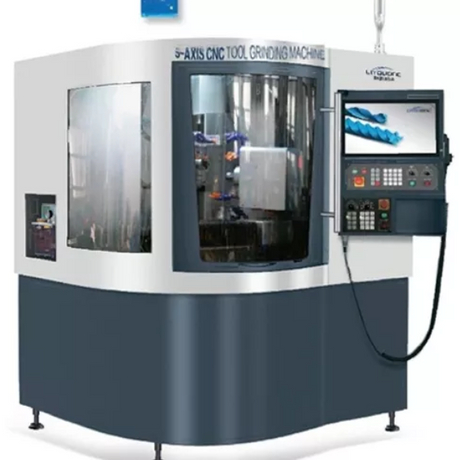

Investing in a 5-axis CNC tool grinding machine represents a critical capital expenditure. It directly dictates your facility’s tool quality, production turnaround, and ability to handle complex geometries. Manufacturers can no longer rely on outdated setups to remain competitive in today's market.
The industry shift toward harder materials and tighter tolerances changes everything. Modern machining demands equipment exceeding basic capabilities. You now require high dynamic rigidity, advanced software, and uncompromising thermal stability from your grinding systems.
This guide provides a structured, evidence-based framework for evaluating vendors and mitigating implementation risks. We will help you navigate hardware specifics, software ecosystems, and automation features. Ultimately, you will select a machine guaranteeing a measurable return on investment.
Base your selection on the specific geometries and tolerances of your core tool families, particularly for demanding sectors like aerospace or medical.
Prioritize machine rigidity, thermal stability, and spindle configuration over baseline speed metrics to ensure consistent carbide and HSS grinding.
Evaluate grinding software for collision simulation and offline programming capabilities to maximize spindle uptime.
Factor in the total cost of ownership (TCO), including automation options, tooling changes, and long-term vendor service agreements.
You must first identify the exact bottlenecks in your current production floor. Determine whether you struggle most with cycle time, setup time, or surface finish quality. Many shops face a different problem entirely. They lack the capability to produce complex geometries. Variable helix end mills and high-performance step drills require multi-axis simultaneous interpolation. Clarifying your primary pain point prevents you from overpaying for unnecessary features. It also ensures you solve your most pressing manufacturing challenge.
Map your machine capabilities directly to your target industries. Different sectors demand vastly different tooling standards. For instance, tool grinding for aerospace requires extreme precision. You will likely machine high-temperature alloys like Inconel and Titanium. These superalloys dictate strict machine rigidity standards. They also require high-pressure coolant delivery systems to prevent thermal damage. Medical tooling demands similar precision but often involves miniature micro-tools. You must align your machine specifications with the specific materials your clients cut.
Establish clear, quantifiable goals for the new equipment before contacting vendors. Vague objectives lead to poor purchasing decisions. We recommend setting strict success metrics. You can track these during the testing phase.
Target a 20% reduction in average cycle time for your highest-volume tools.
Demand consistent runout measurements of less than 0.002mm across batches.
Aim for at least four hours of uninterrupted, unattended manufacturing.
Reduce setup changeover time by a minimum of 30 minutes per job.
Structural rigidity dictates your ability to maintain tolerances during heavy fluting passes. You must carefully compare machine bed materials. Traditional cast iron remains common, but newer materials offer superior benefits. Polymer concrete and mineral cast beds provide excellent vibration damping. They absorb resonance significantly better than iron. This damping capability extends wheel life and improves surface finishes.
You also need to assess the axis configuration. Examine the structural loop stiffness between the spindle and the workhead. A short, tight structural loop ensures tight tolerances. This matters immensely when grinding long tools or working under heavy loads.
Material Type | Vibration Damping | Thermal Stability | Best Application |
|---|---|---|---|
Traditional Cast Iron | Moderate | Prone to rapid expansion | Standard HSS grinding, light loads |
Polymer Concrete | Excellent (6x better than iron) | Highly stable, slow to react | High-precision carbide, aerospace tools |
Mineral Cast | Superior | Exceptional stability | Micro-tooling, ultra-tight tolerances |
Evaluate the differences between direct-drive spindles and belt-driven setups. Direct-drive spindles eliminate power loss and vibration caused by belts. They deliver better torque and yield superior surface finishes. However, they cost more to repair if damaged. You must weigh these factors against your production needs.
Analyze dual-ended spindle designs versus single-spindle configurations. Dual-ended spindles allow you to mount multiple wheels. This setup speeds up simple jobs requiring only roughing and finishing. Alternatively, single-spindle machines use automatic wheel changers. You should choose this option if you frequently swap large wheel packs for diverse tool profiles.
Heat destroys accuracy. You must examine internal cooling loops and spindle chillers. These systems manage the heat generated by the grinding process. Glass scale feedback systems are equally critical. They compensate for microscopic thermal growth in real time. This ensures dimensional accuracy across long production batches.
Verify the integration of high-pressure coolant manifolds. Operators must direct coolant precisely at the grinding zone. Proper coolant delivery prevents thermal cracking in carbide blanks. It also flushes swarf away from the wheel, preventing premature loading.
Hardware means nothing without capable software. You must look for intuitive, parametric programming interfaces. Operators need to quickly define tool parameters using visual menus. They should never write raw G-code for standard tools. Modern software provides drop-down menus for flute length, core diameter, and relief angles. This drastically reduces the learning curve for new employees.
Require software offering full 3D kinematic simulation. This capability protects your investment. Programmers can detect collisions before the machine moves. They can verify complex tool geometries offline at their desks. This workflow keeps your CNC tool grinder running production jobs. Spindle uptime remains high because setup verification happens virtually.
Assess the controller's ability to communicate across your network. It should integrate seamlessly with ERP or MES systems. Real-time monitoring provides valuable data regarding spindle load and machine status. Predictive maintenance alerts notify you before components fail. These smart features prevent catastrophic downtime and optimize your maintenance schedules.
Evaluate your batch sizes before investing in automation. Integrated gantry loaders work perfectly for high-volume standard tools. They move quickly and require minimal programming. However, mixed-batch production demands flexibility. A 6-axis robotic arm handles complex tooling and varying blank sizes effortlessly. You must match the automation style to your typical production runs.

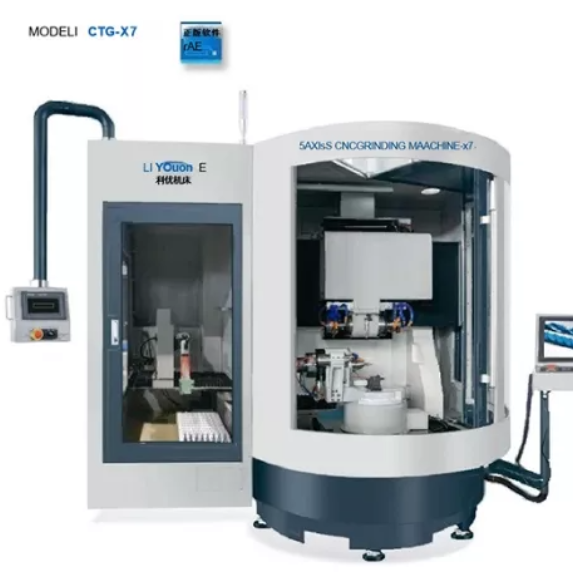

Assess systems enabling completely unattended shifts. An automatic tool grinding machine automatically swaps wheel packs between operations. It can change coolant manifolds to suit different wheels. You might rough flutes using one dedicated setup. The machine then automatically switches to a finer wheel for finishing relief angles. This automation maximizes throughput without human intervention.
Transparently calculate the benefits of automation accessories. You must compare these costs against realistic labor savings. Unattended production increases spindle utilization dramatically. However, you must also factor in potential scrap rates. Unattended errors can ruin an entire pallet of expensive carbide blanks. Implement in-process probing to mitigate this risk. Probes measure the tool during grinding, adjusting parameters to prevent scrap.
Factor in the hidden installation requirements. High-precision machines demand specialized environments. You cannot simply drop them onto a standard shop floor.
Vibration Isolation: You may need to pour specialized foundation pads to isolate the machine from nearby stamping presses or forklifts.
Climate Control: Ambient temperature fluctuations ruin tight tolerances. Install dedicated HVAC systems to maintain a constant room temperature.
Filtration Systems: High-capacity oil and coolant filtration units require significant floor space and dedicated power drops.
Transitioning to advanced multi-axis grinding requires serious upskilling. You must evaluate the vendor’s training programs carefully. Assess their documentation quality and availability of local application engineering support. A complex machine sits idle if your team cannot program it. Ensure the vendor provides hands-on training using your actual parts.
Assess the vendor's service infrastructure. Machine uptime guarantees require regional access to critical spare parts. You cannot wait weeks for a replacement spindle, drive unit, or glass scale to ship from overseas. Demand transparency regarding their service network. Ensure they can dispatch field service engineers rapidly to your specific location.
Never purchase a complex machine based solely on a spec sheet. Marketing brochures often exaggerate capabilities. You must submit a CAD file of your most difficult tool. Demand a live test grind from your shortlisted vendors. Supply your own carbide blanks to ensure a fair test.
Evaluate the actual cycle time achieved during the demonstration. Observe the setup complexity and the steps required to program the part. Finally, demand a comprehensive tool inspection report. The finished tool must meet your exact geometric and surface finish requirements.
Evaluation Category | Target Requirement | Red Flags to Avoid |
|---|---|---|
Hardware Capability | Polymer bed, direct-drive spindle | Excessive vibration, slow thermal recovery |
Software Interface | Full 3D simulation, offline programming | Heavy reliance on manual G-code input |
Vendor Support | Local service techs, stocked spare parts | Overseas-only support, vague SLA terms |
Test Grind Results | Meets tolerance (<0.002mm), fast cycle | Multiple setup failures, poor surface finish |
Request to speak directly with existing customers. Ask the vendor for contacts running similar applications to yours. Call these references to verify post-sale reliability. Ask them about machine longevity and actual software performance. Investigate how the vendor handles warranty claims and unexpected breakdowns. Real-world users provide the most accurate assessment of a machine's true value.
Match the hardware rigidity and spindle configuration directly to your specific material demands.
Ensure the chosen software ecosystem enables quick setups through parametric programming and offline simulation.
Validate real-world performance by demanding strict test cuts using your most complex tool geometries.
Prioritize a long-term partnership with a vendor providing robust local support and rapid parts availability.
Avoid selecting equipment based solely on the lowest initial capital cost, as this often compromises precision.
A: A 4-axis machine handles basic sharpening and straight flutes effectively. It lacks the complex motion required for modern tools. A 5-axis machine simultaneously interpolates five different axes. This simultaneous motion produces complex 3D geometries, variable helixes, and specialized cutting edges required in high-performance manufacturing environments.
A: Machine footprints vary significantly by model. However, automatic systems generally require an additional 30-50% of floor space compared to manual-load versions. You must accommodate robotic loaders, multi-pallet stations, wheel storage racks, and large-scale coolant filtration and chiller units.
A: Aerospace tooling demands ultra-fine surface finishes and absolute geometric precision. You will primarily cut heat-resistant superalloys. Necessary machine features include mineral-cast beds for extreme vibration damping, direct-drive spindles for torque, highly precise glass scales, and advanced thermal compensation systems.
A: Calculate ROI by comparing your current operational costs against the projected output of the new equipment. Analyze cycle time reductions, lower scrap rates, eliminated outsourcing costs, and reduced setup downtime. If you implement automated loading, include the substantial labor savings generated by unattended production shifts.
