What Does A 5-axis Cnc Machine Do?

In the world of precision manufacturing, the 5-axis CNC machine stands as a symbol of advanced engineering and production flexibility. Unlike traditional 3-axis systems, which can move cutting tools along only three linear directions, a 5-axis CNC system adds two additional rotational movements, allowing the cutting tool to approach the workpiece from virtually any direction. This expanded range of motion enables faster setups, complex surface machining, and superior accuracy in industries where microns matter. For manufacturers seeking to produce high-precision tools, components, and molds with tighter tolerances and shorter lead times, companies like Liyou have developed advanced 5-axis CNC tool grinding machines that integrate intelligent automation with consistent, repeatable precision.

What Defines a 5-Axis CNC Machine and Its Top Capabilities

A 5-axis CNC machine is designed to manipulate a part or cutting tool across five different axes simultaneously — three linear (X, Y, Z) and two rotational (A, B). This multi-directional control allows the machine to perform intricate operations that would otherwise require multiple setups or specialized fixtures.

The top three capabilities that set 5-axis machines apart are:

Multi-sided machining in a single setup: This reduces repositioning, saving time while preserving dimensional consistency.

Precision machining of complex contours: Ideal for producing impellers, turbine blades, and molds with intricate geometries.

Access to hard-to-reach features: Deep cavities and undercuts can be machined directly, eliminating the need for special tools or manual intervention.

Together, these capabilities transform how manufacturers approach both prototyping and mass production, enabling high productivity without sacrificing precision.

Common Operations Performed on 5-Axis CNC Machines

While the technical advantages of 5-axis systems are clear, their true value lies in the wide range of real-world operations they can handle. From contour milling to tool grinding and polishing, these machines support applications that require both flexibility and perfection.

Complex Contour Milling for Impellers and Molds

In industries like aerospace and energy, impellers, turbine blades, and mold cavities demand extremely smooth and continuous surfaces to maintain performance efficiency. Traditional 3-axis machining often requires multiple setups and re-alignments, which increase both cost and error potential.
A 5-axis CNC machine eliminates these challenges by allowing simultaneous movement along all axes, ensuring that the cutting tool maintains optimal orientation to the surface. This continuous cutting motion results in better surface integrity and reduced tool wear.

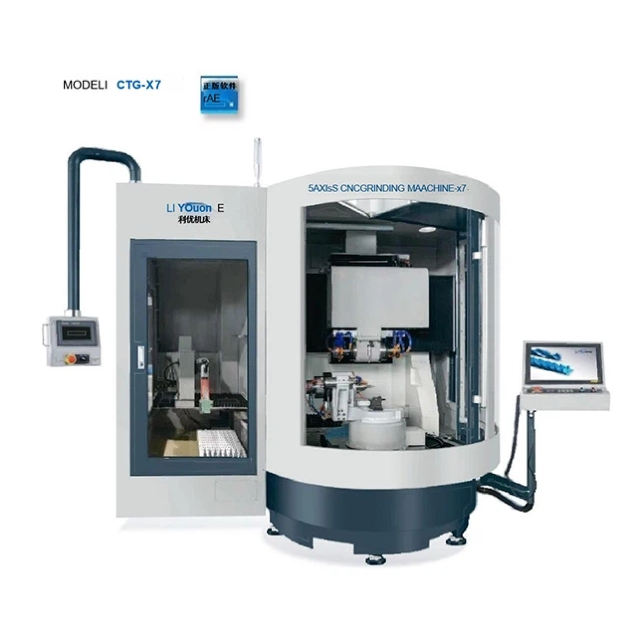

Liyou’s advanced 5-Axis CNC Tool Grinding Machine brings this principle into precision toolmaking. The machine’s high-rigidity structure and precision servo drive system enable complex surface grinding and tool edge profiling with sub-micron repeatability. Whether the goal is to develop new geometries or recondition existing tools, the 5-axis structure guarantees uniformity across the entire tool surface.

Multi-Surface Finishing and High-Accuracy Features

Surface finish is a defining factor in tool performance. High-end applications — such as medical implants, die molds, and precision automotive parts — require mirror-like finishes and micro-level consistency.
5-axis machines can handle multiple surface angles in one continuous motion, eliminating the small mismatches or marks that often occur when separate setups are used. By maintaining a constant tool-to-surface orientation, these machines achieve smoother transitions and better dimensional integrity.

Liyou’s intelligent error compensation technology ensures that every tool profile and cutting edge is finished to exacting standards. The system continuously monitors deviations and adjusts automatically, resulting in consistent grinding quality across every batch.

Deep Cavity and Undercut Access Without Special Fixtures

Certain designs, such as mold inserts or turbine housings, include deep cavities or complex undercuts that are nearly impossible to reach with 3-axis machines. Traditionally, these parts required custom jigs or multiple setups, significantly increasing lead time.
A 5-axis CNC machine provides natural access to such geometries by rotating and tilting either the table or the cutting head, bringing the tool to the correct angle without the need for physical repositioning.

Liyou’s system leverages this same principle for grinding and shaping tools with challenging geometries — ensuring that even the most intricate flute patterns, corner radii, and helical surfaces are machined with ease and precision.

Benefits to Part Quality and Production

Beyond its technical abilities, a 5-axis CNC machine delivers measurable business value by improving both quality and productivity. The ability to perform multiple operations in a single setup means fewer chances for human error, shorter production cycles, and better geometric consistency across batches.

Superior Surface Finish: Because the cutting angle remains optimal throughout the process, the resulting surfaces are smoother and require less post-processing.

Reduced Cycle Time: Multi-face machining drastically cuts the number of setups, allowing operators to complete more parts in less time.

Higher Accuracy and Repeatability: Advanced servo systems maintain precise motion control, reducing deviation even in continuous operation.

For Liyou’s customers, the benefit extends further. The company’s 5-Axis CNC Tool Grinding Machine delivers repeatability up to ±0.002mm, a critical advantage in industries where precision defines performance. Its automatic tool changing system enables uninterrupted 24-hour operation, helping manufacturers maintain high throughput without additional manpower.

Moreover, the machine’s user-friendly control interface simplifies complex operations, enabling technicians to achieve expert-level results with minimal programming effort.

Supporting Toolmaking and Tool Reconditioning

Tool manufacturers and reconditioning workshops often face challenges in producing a wide variety of tool shapes while maintaining consistent quality. Liyou’s 5-axis CNC tool grinding machine is specifically designed to address these challenges by combining automation, adaptability, and precision into one compact platform.

For new tool manufacturing, the five-axis motion allows for accurate grinding of flutes, cutting edges, and relief angles on drills, end mills, and form tools. The intelligent process database stores optimized grinding parameters for each tool type, ensuring repeatable performance across batches.

In reconditioning applications, the same flexibility enables rapid changeovers between different tool geometries. Liyou’s automatic tool changer minimizes downtime by switching grinding wheels and fixtures automatically, allowing tool shops to handle both small-batch customization and large-scale refurbishment efficiently.

This versatility directly supports modern toolmakers who must manage diverse customer requirements without compromising speed or accuracy.

Typical Industries and Real-World Use Cases

5-axis CNC machines are not limited to a single field — their adaptability has made them indispensable across numerous high-precision sectors.

Aerospace: Used to produce turbine blades, structural components, and engine housings where surface precision and strength-to-weight ratio are critical.

Medical: Perfect for crafting implants and surgical instruments with organic, curved surfaces that must fit the human body precisely.

Automotive: Applied in prototype development, engine parts, and high-performance molds for injection and casting.

Toolmaking: Essential for grinding complex cutting tools, ensuring durability and dimensional accuracy across production runs.

Liyou’s 5-axis CNC grinding technology supports all of these industries by delivering machines that combine robust structural integrity with intelligent automation. Whether developing precision tools for aircraft engines or reconditioning dental drills, manufacturers benefit from consistent accuracy, continuous operation, and minimal setup effort.

Common Misconceptions and Pitfalls to Avoid

Despite its advantages, 5-axis machining is often misunderstood. Some assume it automatically improves every process or that it eliminates the need for skilled programmers. In reality, 5-axis systems are only as effective as their programming and application strategy.

Misconception 1: 5-axis machining is only for large-scale production.
In fact, it excels in both small-batch customization and large-volume runs, especially when combined with intelligent process databases like those in Liyou’s systems.

Misconception 2: 5-axis eliminates the need for CAM expertise.
While automation helps simplify workflow, proper toolpath programming is still essential for achieving the best results.

Misconception 3: Every 5-axis machine performs the same.
Machine rigidity, spindle power, control system precision, and software integration can vary significantly between brands. Liyou differentiates itself through high-rigidity construction, precision servo drives, and adaptive compensation technology — ensuring real precision rather than just theoretical capability.

By understanding these factors, buyers can make better-informed decisions and fully utilize the technology’s potential.

What to Ask Before Purchasing a 5-Axis Machine

When evaluating a 5-axis CNC system, several key specifications should guide your decision:

Repeatability and Positional Accuracy: The foundation of consistent quality. Liyou offers ±0.002mm repeatability for long-term reliability.

Spindle Power and Torque: Determines cutting performance across different materials and tool sizes.

Tool Magazine Capacity and Automatic Tool Changing: Directly affects productivity during multi-stage operations.

Support for Multiple Grinding Wheels and Process Database: Enables easy adaptation to different tool geometries and production scales.

Software and User Interface: A well-designed interface reduces programming complexity and speeds up operator training.

Before making a purchase, request a sample grinding or machining demonstration to evaluate the machine’s performance on your specific materials. Liyou welcomes inquiries and sample processing tests, ensuring every customer experiences the quality and stability of its advanced 5-axis systems before investment.

Conclusion

From aerospace components to precision cutting tools, the 5-axis CNC machine has reshaped how manufacturers approach complexity, accuracy, and efficiency. By combining five-axis motion control with intelligent automation, Liyou’s advanced systems enable continuous, high-precision production across diverse industries. The company’s deep expertise in grinding technology, high-rigidity machine design, and intelligent process management ensures that every tool produced meets the highest global standards.

Whether you are developing new tool geometries or enhancing existing manufacturing processes, Liyou’s 5-axis CNC tool grinding technology provides the flexibility, precision, and reliability your production line needs. To learn more about our CNC tool grinding solutions, contact us today to discuss your application or request a demo.
