Views: 0 Author: Site Editor Publish Time: 2026-05-23 Origin: Site
A 5 axis cnc tool grinder is a machine. It shapes and sharpens metal tools very accurately. You can use this cnc machine to make complex tool designs. Many industries need these designs. Today, most manufacturers use advanced cnc systems. These systems have automation. Automation helps make things faster and better.
Almost 57% of tool grinders use 5-axis cnc technology.
Over 62% of aerospace tooling companies pick 5-axis cnc grinders.
In North America, about 54% of new cnc grinders are 5-axis models.
These numbers show that 5 axis cnc tool grinder machines are very important. They help modern production a lot.
A 5 axis cnc tool grinder is a computer-controlled machine. It uses special technology to grind tools very precisely. You control five axes called X, Y, Z, A, and B. The X, Y, and Z axes move the grinding wheel and workpiece in space. The A and B axes turn the grinding wheel to different angles. This system gives you very accurate results.
This machine shapes and sharpens metal tools. It can make designs that regular machines cannot do. Many industries use these machines. You see them in places like aerospace, automotive, and medical factories. A 5 axis cnc tool grinder makes tools with special shapes and high accuracy.
5-axis cnc machines have almost 57% of the market.
You can grind complex shapes with great precision.
These machines are used in factories needing high-quality tools.
A 5-axis cnc machine has many important parts. Each part helps the machine work well and accurately.
The servo motor system moves the axes smoothly.
The spindle motor spins the grinding wheel very fast.
The control panel lets you set up and watch the grinding process.
The automatic tool changer switches tools quickly to save time.
The robotic arm loads and unloads tools without your help.
The software gives you an easy way to program and use the machine.
You need to keep your 5-axis cnc machine in good shape. Doing regular maintenance stops problems and keeps your machine working well.
Maintenance Task | Frequency |
|---|---|
Clean grinding wheel and work surface | Daily |
Check grinding wheel balance | Daily |
Degauss magnetic work table | After each use |
Inspect hydraulic oil reservoir | Monthly |
Clean filter element | Monthly |
Replace coolant | Monthly |
Readjust spindle bearing preload | Semi-annually |
Inspect and calibrate guideway accuracy | Semi-annually |
Test motor insulation resistance | Annually |
Tip: Follow the maintenance schedule to keep your 5-axis cnc machine working its best.
When you use a 5-axis CNC tool grinder, you control five different movements. Three of these are linear axes. They move in straight lines. The other two are rotary axes. They rotate around the linear axes.
X-axis: Moves left and right
Y-axis: Moves forward and backward
Z-axis: Moves up and down
A-axis: Rotates around the X-axis
B-axis: Rotates around the Y-axis
The rotary axes, A and B, let you tilt or spin the tool or the workpiece. This means you can reach many angles without moving the part by hand. The machine can move the tool in straight lines and also rotate it. This combination gives you more ways to shape and sharpen tools.
Tip: The rotary axes help you grind parts from different sides without stopping the machine.
You can create very complex shapes with a 5-axis CNC tool grinder. The linear axes move the tool to the right spot. The rotary axes tilt or spin the tool to the perfect angle. This lets you grind features on many sides of a tool in one setup.
The A-axis rotates around the X-axis. The B-axis rotates around the Y-axis. Sometimes, machines use a C-axis, which rotates around the Z-axis. These rotations let you reach hard-to-access areas. You do not need to remove and reset the tool. This saves you time and keeps your work accurate.
When you combine all five axes, you can grind tools with curves, angles, and special shapes. You can make tools for aerospace, automotive, and medical uses. The five axes work together to give you more control and better results.
You use a 5 axis cnc tool grinder to shape and sharpen tools with high accuracy. The machine moves the grinding wheel and the tool in five directions. Three axes move in straight lines. Two axes rotate. This lets you reach many angles and surfaces without stopping the machine.
The servo motor system in a 5-axis cnc machine gives you precise control. You can set the exact position and angle for each movement. The CTG-X7 uses advanced servo motors. These motors help you make tools that match your design perfectly. The spindle motor gives the grinding wheel strong power. The CTG-X7 has a 16kw spindle motor. It can spin up to 8000 RPM. This high speed lets you grind many types of tools, even those with complex shapes.
You control the whole process with user-friendly software. The software lets you program the machine easily. You do not need to be an expert. You can use the graphical interface to set up your grinding job. The CTG-X7 uses 3D software that makes programming simple. You can see your tool design on the screen before you start.
Automation plays a big role in 5-axis cnc grinding. The CTG-X7 can use a robotic arm to load and unload tools. This means you do not have to stop the machine to change tools. The automatic honing system keeps your tools sharp. You save time and get better results.
Modern 5-axis cnc machines use advanced software. For example, ANCA's ToolRoom RN35 software can reduce cycle times by up to 20%. It helps you set the best feed rates and keeps the grinding process steady. The software checks the quality of each tool. You can trust that your tools will meet high standards.
Note: Automation and smart software help you work faster and make fewer mistakes.
You can follow these steps to understand how 5-axis cnc grinding works:
Design the Tool
You start by creating a digital model of your tool. The software lets you draw or import your design. You can use the graphical interface to adjust the shape and size.
Set Up the Machine
You place the tool blank in the holder. The software helps you choose the right grinding wheel and set the correct angles. You can use the touch screen to check all settings.
Program the Grinding Path
The software calculates the best path for the grinding wheel. You can see a 3D simulation of the process. This helps you avoid mistakes before you start.
Start the Grinding Process
The machine moves the tool and the grinding wheel at the same time. The servo motors control each axis with high accuracy. The spindle motor spins the wheel fast. The machine grinds the tool to match your design.
Automatic Tool Handling
If you use the CTG-X7, the robotic arm loads the next tool. The machine can keep working without stopping. The automatic honing system sharpens the tool edge.
Quality Check and Finishing
The software checks the finished tool. It measures the size and shape. If the tool meets your standards, the machine moves to the next one. If not, you can adjust the settings and try again.
Here is a table showing how automation and user-friendly software help you in 5-axis cnc grinding:
Feature | Description |
|---|---|
User-friendly software | The Numroto tool design software offers intuitive programming capabilities, streamlining the process. |
Scalable and modular design | The machine can be upgraded and retrofitted, adapting to changing production needs. |
Thermal stability and process capability | Automation and advanced software help maintain high precision and reduce downtime, enhancing productivity. |
You can see more benefits of 5-axis cnc grinding in this list:
You can move all five axes at the same time. This lets you grind complex shapes in one setup.
You do not need to reset the tool many times. This saves you time and keeps your work accurate.
You can grind many types of materials. This makes the machine useful for different industries.
Modern 5-axis cnc machines like the CTG-X7 also have features such as:
Fully intelligent machine tool interconnection for better precision.
Flexible six-axis manipulator for advanced grinding tasks.
Offline programming and graphic simulation for quick changes.
Ultra-high precision dressing to keep the grinding wheel sharp.
Powerful data storage and visual programming for easy operation.
Tip: Using automation and smart software helps you make more tools in less time and with better quality.
A 5-axis cnc machine helps you make cutting tools with fewer mistakes. It makes your work more accurate. You can finish grinding in just one setup. This means you do not have to move the tool again and again. When you do not move the tool, you make fewer errors. Old ways need you to handle and reset the tool many times. That can cause mistakes. With five axes, you control the machine very well. Every tool you make stays the same quality.
With 5-axis grind machining, you get these benefits:
You do not need to move the tool much, so you make fewer mistakes.
Your tools are the right size and shape every time.
You can finish parts faster, which is good for things like airplane parts.

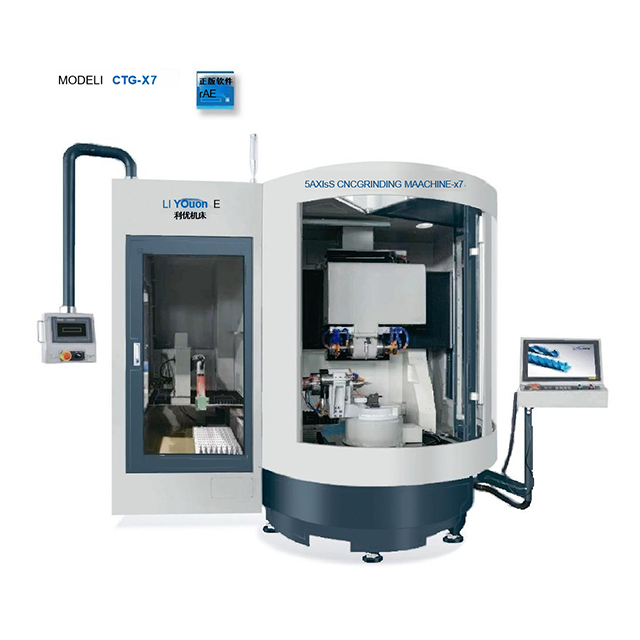

The Liyou CTG-X7 makes these things even better. It has strong servo motors and a big spindle motor. The spindle motor is 16kw and spins up to 8000 RPM. This lets you grind tools fast and still be very exact. The robotic arm helps the machine work by itself. You do not have to wait as much. You can make more tools in less time.
A 5-axis cnc machine lets you work on hard tool shapes easily. The machine can turn and tilt the tool or the grinding wheel. This helps you reach places that are hard to get to, like undercuts and deep holes. You can grind small details in one setup. This keeps your work very exact.
Here are some main benefits:
You can reach tough angles without taking out the tool.
You keep your work exact because you do not set up again and again.
You can work from many sides at once, so you finish faster.
The CTG-X7 can be set up in different ways. You can pick a granite or cast iron base. This helps you use the machine for many tool shapes and jobs. The automatic honing system keeps your tools sharp. This makes your tools work better and last longer.
Many industries use 5-axis machining because it works fast and makes tools very exact. The machine is good for tools in airplanes, cars, hospitals, and energy work.
Application | Industry |
|---|---|
Aircraft engine blades | Aerospace |
Medical implants | Medical |
Gearboxes and axles | Automotive |
A 5-axis cnc machine like the CTG-X7 helps you work faster. You do not need to set up as much. You can make more tools in less time. The robotic arm puts tools in and takes them out by itself. The machine can keep working without you. This saves time and lets you use the spindle more. You can make more cutting tools quickly.
You often see 3-axis cnc grinders in many workshops. These machines move the tool in three directions: X, Y, and Z. You can grind simple shapes with a 3-axis cnc machine. If you need to make basic tools, you can use this type of cnc grinder. You must stop the machine and reset the tool to reach different angles. This takes more time and can cause mistakes.
A 5-axis cnc grinder gives you more control. You can move the tool in five directions. You do not need to stop and reset as often. You can grind complex shapes in one setup. You save time and keep your work accurate. The 5-axis cnc machine lets you reach hard angles and surfaces. You can make tools for aerospace, automotive, and medical jobs.
Tip: If you want to make advanced tools, you should use a 5-axis cnc grinder instead of a 3-axis cnc machine.
Here is a table to help you compare:
Feature | 3-Axis CNC Grinder | 5-Axis CNC Grinder |
|---|---|---|
Axes | 3 | 5 |
Tool Reset Needed | Often | Rarely |
Complex Shapes | Limited | Easy |
Automation | Basic | Advanced |
You may hear about 6-axis cnc grinders. These machines add one more axis to the five you already use. You can move the tool in six directions. You get even more flexibility with a 6-axis cnc machine. You can grind very complex shapes and reach more angles.
Most jobs do not need six axes. You can finish almost all tool grinding with a 5-axis cnc machine. You get high precision and fast work. The 5-axis cnc grinder costs less and uses less space. You can use the 5-axis cnc machine for many types of tools.
Note: If you need to grind special shapes or work with unique materials, you can look at 6-axis cnc machines. For most jobs, a 5-axis cnc grinder gives you the best balance of speed, accuracy, and cost.
You can choose the right cnc grinder for your needs. Think about the shapes you want to make and the time you want to save. The 5-axis cnc machine helps you work faster and make better tools.
A 5 axis cnc tool grinder helps you make tools very accurately and quickly. You can move the machine in five directions to reach all angles. The machine uses smart software, automation, and robots to help you work better. You can make complicated parts for airplanes, cars, and hospitals.
Axis Movement | Description |
|---|---|
X, Y, Z | Move the grinding wheel and tool in space. |
A, B | Tilt and turn to get the right angles. |
You get more exact results and finish faster.
You can change jobs fast without waiting.
You can meet tough rules for quality.
If you want your factory to do better, try using this new technology.
You can grind end mills, ball-end mills, taps, reamers, and medical instruments. The machine works with tool diameters from 1 mm to 25 mm and lengths up to 400 mm.
Automation loads and unloads tools for you. The robotic arm and automatic honing system save time. You can run the machine longer without stopping. This boosts your productivity.
You do not need advanced training. The machine uses user-friendly 3D software. You can program and operate it with basic computer skills. The graphical interface makes setup easy.
A 5-axis CNC grinder lets you make complex shapes in one setup. You do not need to reset the tool often. You get higher accuracy and finish jobs faster than with a 3-axis machine.
