How to Sharpen End Mills with a Grinder Step by Step

You can make mills sharp with hand grinders or machines. Mills need gentle care to get their cutting edge back. Mills get dull when you use them a lot. You should look at mills before you sharpen them. Mills work well if you follow safety rules. Mills need the right tools to be sharpened safely. Mills cut better when you use good grinding methods. Mills sometimes need an end mill grinder for hard jobs. Mills need you to be exact when sharpening. Mills stay sharp longer if you take care of them.

Tools, Safety, and Preparation

Essential Tools and End Mill Grinder

You need the right tools to sharpen mills. Start with a basic bench grinder for simple jobs. You can use a specialized end mill grinder for better results. Some shops use advanced machines like the Liyou Machines End Mill Re-Sharpening Machine. This machine helps you sharpen mills quickly and with high accuracy. Here is a list of tools you may need:

• Bench grinder

• End mill grinder

• Liyou Machines End Mill Re-Sharpening Machine

• Tool holders and clamps

• Cleaning brushes

• Measuring devices (like calipers)

• Coolant or water spray

You should pick the end mill grinder that matches your skill level and the type of mills you want to sharpen. Each tool helps you get sharp mills for better cutting.

Safety Gear and Workspace Setup

You must stay safe when you use a grinder. Always wear safety glasses to protect your eyes from sparks and dust. Do not wear loose clothing or jewelry. Tie back long hair. Never use gloves when working with moving tools. Keep your workspace clean and organized. Make sure you clamp all tools tightly before you start the grinder.

Tip: Always have another person nearby when you use machines. If you are new to sharpening mills, ask for help from someone with experience.

Here are some best practices for your workspace:

• Use rigid, high-precision machines to prevent chipping.

• Apply coolant to avoid burning or thermal damage.

• Take shallow passes with the grinder.

• Keep the grinding wheel in good condition.

• Use spark-resistant tools if flammable materials are present.

Preparing End Mills for Sharpening

Before you sharpen mills, you need to check them carefully. Follow these steps:

1. Check for cracks in your mills.

2. Decide if the mills can be re-sharpened.

3. Make sure your mills are real and not fake.

4. Choose the best way to sharpen each tool.

Clean your mills before you use the end mill grinder. Remove any dirt or oil. Inspect the cutting edges and flutes. If you see deep chips or broken parts, you may need to replace the mills instead of sharpening them. Good preparation helps you get the best results from your grinder and keeps your tools in top shape.

Sharpening Steps with a Grinder

Setting Up the End Mill Grinder

You need to set up your grinder carefully before you sharpen end mills. This helps you get the best results and keeps your tools safe. Follow these steps to prepare your grinder and your mills:

1. Clean each end mill. Remove any oil or dirt.

2. Inspect the cutting edges. Look for chips or cracks.

3. Measure the end mill to check its size.

4. Mount the diamond grinding wheel on your grinder.

5. Secure the end mill in the tool holder or clamp.

6. Set up the coolant system to keep the tool cool during sharpening.

Tip: Always check that your grinding wheel and coolant system work well before you start. This prevents overheating and damage to your mills.

Grinding Cutting Edges and Relief Angles

You must grind the cutting edges and relief angles with care. This step brings back the sharpness and helps your mills cut smoothly. Start by grinding the primary relief angle. Set it between 8 and 12 degrees. After that, grind the secondary relief angle, which is steeper.

Here is a table to help you remember the recommended angles:

Continue to sharpen the end of the mill if you have a center-cutting type. Grind along the flutes to restore their sharpness. If your mills have gashes, grind them as well. This helps with chip removal during cutting.

• Start with a coarse grit to shape the edge.

• Move to a finer grit for a smooth finish.

• Keep the pressure and angle steady as you sharpen.

• Use a sweeping motion to spread heat and avoid overheating.

• Take breaks to let the tool and grinder cool down.

Note: Always use enough coolant. Aim the spray at the cutting edge. This keeps your mills from burning or warping.

Checking Results and Adjustments

After you sharpen end mills, you need to check your work. Inspect the cutting edges and measure the tool again. Look for even, sharp edges and smooth surfaces. Test the mill on a piece of scrap material. If you see uneven cuts or rough edges, adjust your grinding technique.

Common mistakes can happen during sharpening. Watch out for these:

• Using the wrong grit size can make the finish rough.

• Picking the wrong abrasive tool can damage your mills.

• Not checking your tools before sharpening can cause accidents.

• Not enough coolant can burn the tool.

• Grinding too fast can create cracks.

Tip: Always match the grinding wheel to the type of end mill. Use diamond wheels for carbide mills.

You can also sharpen end mills with other methods. Some people use a lathe and an angle grinder to sharpen the tips. This method helps keep all teeth on the same plane. You can also use a bench grinder to shorten the mill and refresh the corners. Hand sharpening with a steady hand and a well-dressed wheel can work for small jobs.

Automated machines, like CNC grinders, control the depth and speed of the cut. These machines give you high precision and consistency. Manual sharpening depends on your skill and can vary in quality.

Remember: Practice makes perfect. The more you sharpen end mills, the better your results will be.

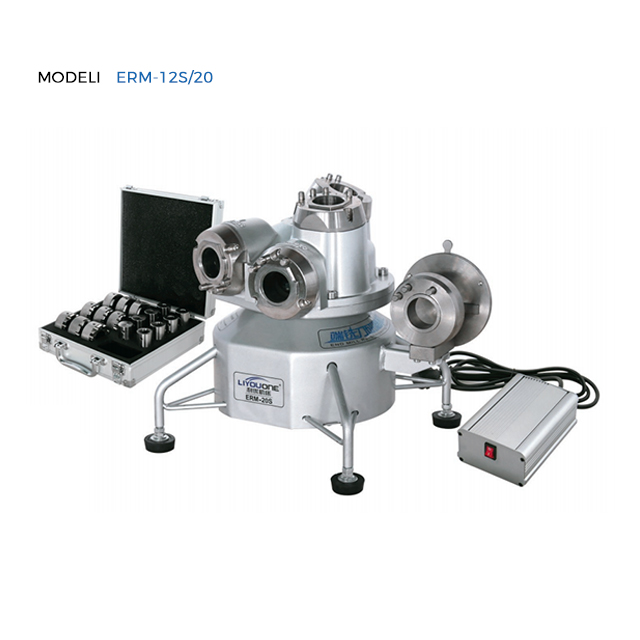

Advanced Solutions: Liyou Machines End Mill Re-Sharpening Machine

Features and Benefits

The Liyou Machines End Mill Re-Sharpening Machine can help your shop work better. This tool gives you high accuracy and steady quality when sharpening carbide end mills. You get quick results and the machine works well every time. The five-axis CNC system lets you sharpen end mills with very small errors, only 0.01 mm. You can finish sharpening in less than one minute, even when the machine runs at 6000 rpm.

Your tools will look and work better after sharpening. The machine’s automation and MES system help you plan jobs and check tool life. Robot interface makes work faster and easier. Batch jobs run smoothly, so you can handle lots of tools at once.

The machine also makes your shop safer. Automated grinding lowers shaking, noise, and heat debris. This means you and your team are safer. You get better accuracy and quality with every tool.

How Automated Sharpening Works

You can sharpen end mills in a few easy steps:

1. Put the tool in the machine’s clamp. Make sure it fits right.

2. Start the grinding process. Watch the machine and change settings if needed.

3. Check the tool as it sharpens. The machine looks for wear and fixes problems right away.

The smart system helps you get great results. You do not need special skills to use it. The touch screen and simple programs make it easy for anyone.

When to Choose an Automatic End Mill Grinder

Pick an automatic grinder if you want high quality and performance in your shop. This is best if you use premium carbide tools often or have big jobs. It is not needed if you only sharpen tools sometimes or use throwaway cutters.

• Great for shops that use premium carbide tools often

• Best for shops with lots of tools to sharpen

• Not needed for people who sharpen tools rarely

Manual sharpening costs less for small jobs. For basic carbide end mills under 0.5", you might pay $15 to $35. Bigger tools cost $35 to $65. Automated machines cost more at first, but you save time and get better results. You also lower health risks and make your shop work better.

Tip: If you want the best results for sharpening carbide end mills, an automatic grinder like the Liyou Machines End Mill Re-Sharpening Machine is a smart pick.

Troubleshooting and Maintenance Tips

Common Sharpening Mistakes

You can avoid many problems if you know the most common mistakes. Sometimes you use the wrong grinding wheel. Sometimes you rush and skip checking the tool before sharpening. You might forget to use enough coolant. These mistakes can cause uneven edges, burns, or cracks. You should always check your setup and take your time.

Tip: Always inspect your end mill before you start. Look for chips, cracks, or worn edges.

Here are some issues you might face and how to avoid them:

• Grinding too fast can cause cracks.

• Using the wrong grit makes the edge rough.

• Not cleaning the tool before sharpening leads to poor results.

• Forgetting to secure the tool can cause accidents.

Maintaining Sharp End Mills

You can keep your end mills sharp with good maintenance. Clean your tools after each use. Store them in a dry place. Use proper speeds and feeds when cutting. Apply enough coolant to prevent overheating. You should check your tools often for signs of wear.

Sharpening a carbide end mill can extend its lifespan by up to 50%. Most tools can be resharpened three to five times. This means you get much more use from each tool compared to new ones.

Here is a table showing common maintenance errors:

You can follow industry standards for best results. Boggs Tool Company uses a liquid honing process for sharp edges. Brian Gruschow offers reliable sharpening services.

• Boggs Tool Company: Serving since 1932 with liquid honing for optimal sharpness.

• Brian Gruschow: Known for great service in end mill sharpening.

When to Replace Instead of Sharpen

You should replace your end mill if you see deep chips, cracks, or broken flutes. If the tool has been sharpened five times, it may not work as well. Sometimes the tool is too worn or damaged to fix. You save time and money by replacing tools that cannot be restored.

Note: Always check the tool’s condition before deciding to sharpen or replace it.

You can sharpen end mills in different ways. Each way works a bit differently. Look at this table:

If you take care of your tools, they stay sharp. This helps you make better parts and saves money. Always be safe and pick the best tool for your work.

FAQ

How often should you sharpen end mills?

You should sharpen end mills when you notice dull edges or poor cutting performance. Most mills need sharpening after three to five uses. Check your tools regularly to keep them sharp.

Can you sharpen coated end mills?

You can sharpen coated end mills, but you must use gentle grinding. Grinding too hard can damage the coating. Always inspect the coating after sharpening to make sure it still protects the tool.

What is the best grinder for beginners?

A bench grinder works well for beginners. You can use it for simple sharpening jobs. Specialized end mill grinders offer more accuracy and safety. Choose a tool that matches your skill level.

How do you know if an end mill is too worn to sharpen?

Look for deep chips, cracks, or broken flutes. If you see these signs, you should replace the tool. You can use a table to check:

Is coolant necessary during sharpening?

Coolant helps prevent overheating and tool damage. You should always use coolant when sharpening end mills. It keeps the cutting edge cool and improves the finish.
