Edge chipping in carbide cutting tools carries massive operational costs. You face higher scrap rates daily. Compromised tool life continuously wastes expensive raw materials. The core issue stems directly from the material's physical properties. Tungsten carbide provides manufacturers with extreme hardness. However, this impressive hardness comes paired with inherent brittleness. This specific combination makes the material highly susceptible to micro-cracking during the grinding process. Small fractures rapidly evolve into severe edge chipping. You cannot simply grind faster to increase production. Instead, you must carefully balance mechanical forces and thermal management. Mitigating these microscopic failures requires strict optimization of your carbide tool grinding parameters. In this guide, you will discover exactly which settings protect your edges. We will explore speeds, feeds, coolant strategies, and machine rigidity.
High feed rates and excessive depth of cut are the primary mechanical drivers of edge chipping.
Wheel speed (RPM) must be balanced with the feed rate to maintain optimal chip thickness and prevent abrasive glazing.
Thermal shock from inadequate coolant application causes micro-cracks that manifest as edge chipping.

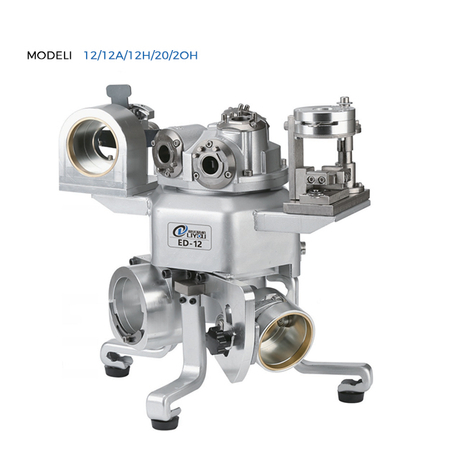

Investing in a rigid, high-precision CNC Tool Grinding Machine minimizes vibration-induced fractures during manufacturing and carbide tool re-sharpening.
Edge chipping impacts your bottom line severely. You experience reduced cutting tool performance on the shop floor. Operators see premature failure in demanding machining operations. Quality control teams reject more finished parts. We must understand the root causes to solve these issues. Carbide edge degradation stems from two distinct forces.
First, mechanical impact damages edges quickly. This occurs when cutting forces exceed the transverse rupture strength of the carbide. The material simply cannot handle the physical load. The cutting edge fractures under the pressure. Every diamond grain acts like a microscopic hammer. When this force crosses the threshold, the binder fails. The tungsten grains pull out entirely.
Second, thermal damage operates invisibly. Improper heat dissipation creates massive residual tensile stresses. The cobalt binder expands differently than the tungsten grains. This thermal mismatch forms microscopic cracks along the tool edge. These hidden cracks weaken the structure. They eventually chip when placed under normal machining loads.
Vibration acts as a massive force multiplier here. Machine chatter degrades delicate edges instantly. Spindle runout creates highly uneven chip loads. This uneven loading hammers the carbide aggressively. This constant hammering translates directly into visible edge chipping. We must stabilize the entire system to prevent this.
You must control several interlocking variables to produce pristine cutting edges. Let us examine the core parameters driving success.
Wheel speed directly dictates the cutting forces applied to your tool. Higher wheel speeds generally reduce the single-grit chip thickness. A smaller chip thickness lowers the mechanical force exerted by each diamond grain. This reduction helps prevent physical edge fracturing.
However, higher speeds generate significantly more heat. You must find the operational sweet spot carefully. We recommend a strict evaluation framework for this balance. First, set your baseline speed according to the wheel manufacturer specifications. Next, monitor your spindle load actively. Finally, inspect the ground edge under high magnification. Adjust the speed down if you observe thermal cracks. Adjust it up if you see mechanical grain pull-out.
Aggressive feed rates remain the most common cause of chipping. Pushing the wheel rapidly into the carbide creates excessive mechanical stress. The diamond grit digs too deeply into the hard material. The resulting force simply breaks the brittle carbide edge off.
You should adopt a conservative approach in reality. Start using lower feed rates during your initial setup. Scale the feed rate up gradually over time. Monitor the edge quality continuously under magnification. Stop increasing the feed once you detect any microscopic edge deterioration.
You must clearly differentiate between roughing and finishing passes. Roughing passes focus exclusively on bulk material removal. Finishing passes dictate the final surface integrity.
Minimizing the depth of cut on your final pass is critical. A very light finishing pass drastically reduces edge micro-fractures. It cleans up the subsurface damage left by heavier roughing operations.
Comparison of Typical Roughing and Finishing Parameters
Operation Phase | Depth of Cut (ae) | Primary Goal | Edge Risk Level |
|---|---|---|---|
Initial Roughing | 0.50mm - 1.00mm | Maximum Material Removal | High |
Semi-Finishing | 0.05mm - 0.10mm | Form Generation | Medium |
Final Finishing | 0.01mm - 0.02mm | Surface Integrity | Low |
Expert tool grinders know grit selection matters immensely. Finer grit diamond wheels are mandatory for final edge generation. We typically recommend D46 or D25 grain sizes. These finer grains take much smaller bites of carbide. This gentle cutting action preserves the fragile tool edge perfectly.
Bond type plays an equally important role in success. Resin or polyimide bonds perform much better than standard metal bonds. Resin bonds offer a slight, beneficial elasticity. This elasticity absorbs minor shocks during the grinding process. It significantly reduces the physical shock transferred directly to the carbide edge.
Heat destroys carbide much faster than friction alone. Proper coolant application remains non-negotiable for edge integrity.
Simply flooding the work area rarely works well. A spinning grinding wheel creates a highly dense air boundary layer. This fast-moving air barrier deflects low-pressure coolant away instantly. The fluid never touches the actual grinding zone.
Coolant velocity must match or exceed the wheel surface speed. High-velocity streams penetrate the air boundary layer effectively. The fluid must reach the exact point of contact to remove heat. If it fails to reach this zone, the carbide overheats rapidly. Heat buildup leads directly to thermal cracking.
Precise nozzle positioning dictates your operational success. You must aim the fluid exactly at the wheel-tool interface.
Follow these rules for accurate nozzle positioning:
Align the primary nozzle completely parallel to the wheel rotation direction.
Ensure the fluid fan covers the entire width of the grinding arc.
Install secondary nozzles to cool the tool body continuously.
Intermittent cooling causes massive manufacturing problems. It repeatedly heats and quenches the hot carbide. This rapid temperature change induces severe thermal shock. The shock creates deep microscopic cracks. These cracks guarantee subsequent edge chipping during use.
Operators constantly debate ideal coolant types. Straight grinding oils provide superior lubricity. This lubricity reduces friction directly at the cutting source. Less friction means less heat generated during the cut.
Water-based fluids cool better but lubricate poorly. Tungsten carbide requires high lubricity to prevent diamond wheel glazing. Furthermore, water can leach cobalt from the carbide matrix over time. Therefore, straight oil remains the objective best choice for grinding carbide tools.
Perfect parameters do not guarantee a perfect tool. You must address the microscopic reality of the final edge.
A newly ground carbide edge feels incredibly sharp. However, under a microscope, the edge looks remarkably jagged. This microscopic topography remains extremely fragile. The peaks of this jagged edge will snap off immediately. They break during the very first machining cut. This initial snapping initiates rapid, uncontrolled tool wear.
You must perform post-grind edge preparation. The industry often calls this crucial step passivation. Several reliable methods exist to smooth the cutting edge properly.
You can use nylon brushing systems embedded with abrasive silicon carbide. Drag finishing machines drag the tool through a dense media bed. Abrasive blasting uses fine glass beads or aluminum oxide particles. All these methods aim to create a controlled radius. Sometimes operators create a specific T-land flat instead.
Proper edge preparation distributes cutting forces much more evenly. A honed radius acts like a strong microscopic arch. It masks microscopic grinding flaws completely. This controlled geometry prevents catastrophic chipping. It significantly extends the overall working life of the tool.

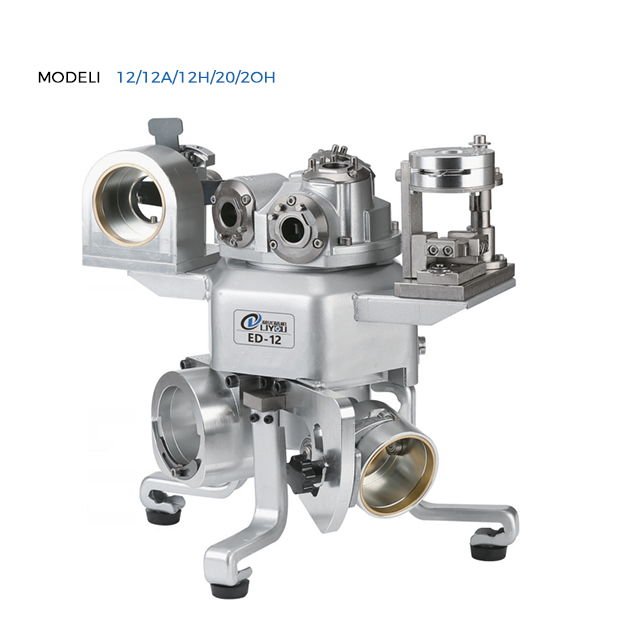

Your optimized parameters mean nothing if your machine lacks stability. Modern equipment plays a massive role in preserving edge quality.
Vibration ruins delicate carbide edges instantly. Machine beds made of polymer concrete dampen vibrations exceptionally well. The industry also calls this mineral cast material. It absorbs mechanical resonance far better than traditional cast iron frames.
A vibration-free base directly reduces edge chipping risks. The grinding wheel engages the tool smoothly at all times. There is absolutely no micro-bouncing during the cut. The cutting forces remain perfectly stable.
The spindle holds the diamond grinding wheel. Its mechanical precision dictates the final cut quality entirely. Ultra-low spindle runout is an absolute necessity here.
We measure this critical runout in single microns. A spindle possessing high runout hammers the carbide edge repeatedly. A precision spindle ensures consistent wheel engagement constantly. Every single diamond grit cuts evenly and predictably.

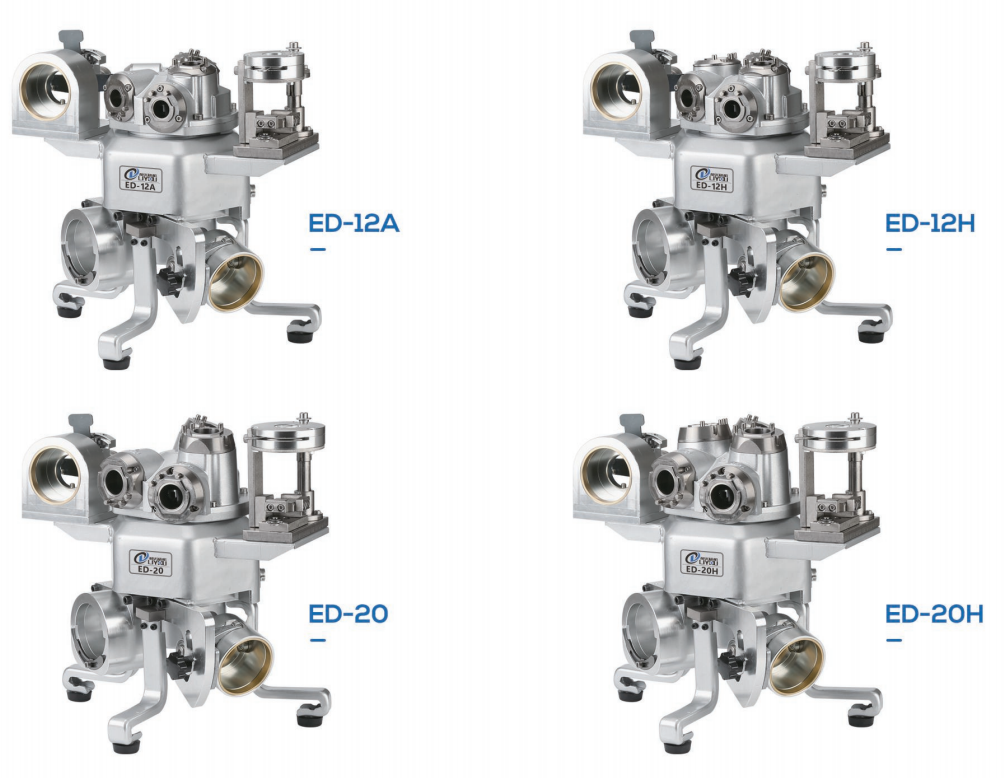

Modern CNC Tool Grinding Machine systems use advanced software algorithms. This specialized software ensures smooth, continuous tool path interpolation always.
The machine axes move without any hesitation. Hesitation causes visible dwell marks on the tool. Dwell marks generate sudden force spikes. These unpredictable spikes fracture the brittle tool. Smooth kinematics completely prevent these damaging issues during new manufacturing operations and routine Carbide Tool Re-Sharpening.
Do not buy machinery based solely on the base price tag. You must evaluate potential machine purchases strategically and technically.
Look for excellent thermal stability first. Check the provided spindle quality documentation carefully. Inspect the coolant delivery architecture personally. A well-built machine protects your carbide edges automatically. A cheap machine requires constant parameter adjustments. You will waste hours compensating for inherent mechanical flaws.
Reducing edge chipping requires a strictly holistic operational approach. You cannot fix the complex issue by changing a single variable alone. You must optimize your feed-to-speed ratios carefully. You need strict thermal control through proper coolant application daily. Ensuring mechanical machine rigidity is equally vital to your success.
Take immediate action today to protect your expensive tools. Audit your current grinding processes thoroughly on the shop floor. Start by inspecting your finishing pass feed rates. Check your exact coolant nozzle alignment closely. Consult an equipment specialist to evaluate your machine vibration-dampening capabilities. These targeted steps will dramatically reduce your scrap rates. They will increase your overall tool longevity immensely.
A: Low feed rates alone do not guarantee perfect edges. Your wheel may be glazed, which increases rubbing instead of cutting. Dull diamond grit forces the carbide to fracture. You might also have insufficient coolant penetration or excessive spindle runout. All these factors create immense pressure and heat, causing chipping regardless of feed speed.
A: You should not rely on strict timeframes. Instead, dress the wheel based on spindle load monitoring. A loaded wheel increases grinding pressure exponentially. When you see the spindle load spike or observe burn marks on the carbide, dress immediately. Maintaining open grit is crucial for low-pressure edge grinding.
A: Edge chipping occurs more frequently during re-sharpening. Used tools contain pre-existing fatigue and invisible micro-cracks from prior machining operations. You must execute careful roughing passes. These initial passes must remove the entire damaged zone before you begin the final finishing pass. Otherwise, the old fractures simply propagate into new chips.
