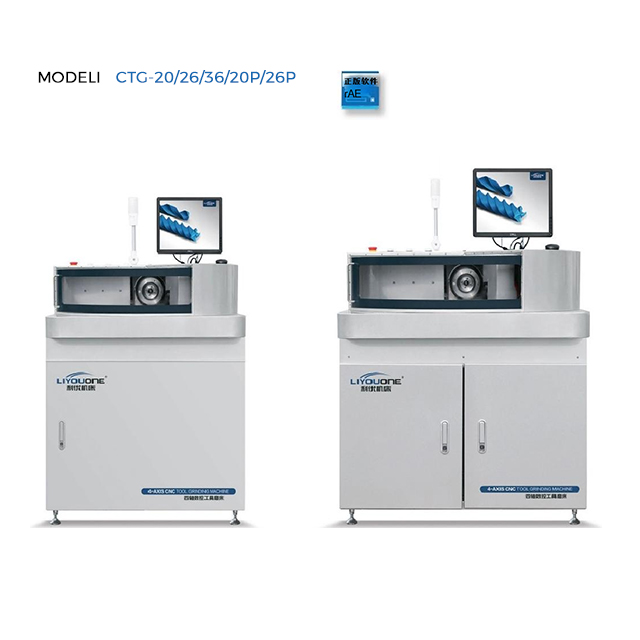

Acquiring capital equipment involves incredibly high stakes for any manufacturing facility. Procuring a CTG series grinder means establishing a long-term production partnership rather than merely buying a machine. A rushed decision often leads to years of operational bottlenecks. On paper, many suppliers boast identical tolerances and impressive capabilities. You will quickly discover the real differentiation lies deeper in assembly standards, software integration, and post-installation support. Without looking beyond glossy brochures, buyers risk severe integration delays. We provide production managers and procurement teams an evidence-based framework here. You can use it to audit, compare, and select a reliable 4 axis CNC tool grinding machine supplier. By learning how to spot marketing hyperbole, you will secure machinery capable of delivering true precision.
A supplier’s value is dictated by Total Cost of Ownership (TCO), factoring in machine uptime, tooling consistency, and spare parts availability.
Hardware evaluation must move beyond brochures; demand verifiable CMM (Coordinate Measuring Machine) data and spindle runout reports for the CTG tool grinder.
Software capability and kinematic modeling support are just as critical as the physical CNC grinding machine for minimizing setup times.
Implementation risks are best mitigated through structured factory acceptance testing (FAT) and guaranteed service-level agreements (SLAs).
Manufacturers often start evaluation processes looking strictly at technical specifications. They compare axis travels, spindle speeds, and footprint dimensions. However, evaluating a supplier requires examining how well their machine aligns with your factory floor realities. Success relies on strategic alignment, operational viability, and long-term financial stability.
Every machine shop operates under unique demands. You must define whether your primary goal is high-volume standardized production or rapid-turnaround custom tooling. High-volume runs require a grinder built for relentless continuous operation. Here, thermal stability and automated wheel changers matter most. Conversely, custom tooling shops prioritize fast setups and flexible software. You need rapid physical changeovers for small batch sizes. Discuss these specific production scenarios during early supplier meetings. A reputable supplier will tailor their recommendations to your core business model rather than pushing a one-size-fits-all solution.
Many procurement teams focus heavily on the initial capital expenditure. They ignore the hidden expenses tied to cheaper machinery. Bargain equipment often suffers from accelerated spindle wear due to poor bearing quality. These machines also experience thermal instability during prolonged grinding cycles. When the machine base expands or contracts, precision drops significantly. This instability leads to excessive scrap rates. You end up wasting expensive carbide blanks. Investing slightly more upfront in robust casting and premium spindles saves substantial money over time. It prevents unplanned downtime and maintains strict geometric tolerances across long batches.
Industrial grinders are long-term assets. They have an expected lifecycle of 10 to 15 years. You must verify the supplier’s history in manufacturing precision grinding equipment. A new company might offer aggressive pricing. However, they may not survive to provide spare parts five years later. Ask for historical financial data or longevity proof. Check their installed base across different geographic regions. A stable manufacturer guarantees ongoing software updates and mechanical support. They ensure your equipment remains viable well into the next decade.
You cannot evaluate hardware through marketing materials alone. Physical build quality dictates how a machine absorbs vibration and maintains accuracy under heavy grinding loads. Scrutinizing the internal architecture of a CTG tool grinder reveals the true engineering standards of the manufacturer.
The machine bed acts as the foundation for any precision grinder. You must evaluate the supplier's approach to thermal stability and vibration damping. Many premium manufacturers now use mineral cast beds instead of standard cast iron. Mineral casting absorbs vibrations significantly better than traditional iron. It also provides superior thermal inertia. This means the machine resists temperature fluctuations on the shop floor.
Machine Base Material Comparison
Material Type | Vibration Damping | Thermal Stability | Ideal Application |
|---|---|---|---|
Standard Cast Iron | Moderate | Prone to rapid thermal drift | Low-tolerance standard tooling |
Polymer/Mineral Cast | Excellent (up to 6x better) | High thermal inertia | High-precision, continuous grinding |
Top-tier machines rely on high-quality internal components. Scrutinize the origin of critical parts like linear guideways and ball screws. A trustworthy supplier will transparently list the brands they integrate. They should use globally recognized names for controllers and servomotors. If a manufacturer hides component origins, they likely use inferior, unbranded substitutes. These cheap parts degrade quickly under the stress of daily carbide grinding. Transparency indicates total confidence in the machine's build quality.
Generic claims of "high precision" mean very little in tool grinding. You must demand hard data to validate these marketing claims. Request documented dynamic stiffness reports from the supplier. Ask for thermal deformation test results recorded over a continuous 24-hour cycle. Furthermore, ask for raw CMM (Coordinate Measuring Machine) data from prior builds.
Dynamic stiffness reports: Prove the machine resists axis deflection under heavy load.
Thermal deformation data: Show how accuracy shifts as the spindle heats up over time.
Raw CMM results: Verify actual part output matches programmed geometric dimensions perfectly.
Physical hardware only represents half of the machining equation. The software ecosystem drives the daily usability of any CNC grinding machine. Outdated or closed-loop software causes severe production bottlenecks. You must evaluate how the supplier handles digital workflows and complex geometry programming.
Check the supplier’s proficiency with industry-standard control architectures. The software must allow seamless import of DXF files or standard tool geometry parameters. Proprietary, locked-down systems force your operators to learn entirely new programming languages. They also limit integration into your existing shop floor network. Ensure the control system supports open communication protocols. This flexibility allows easy data collection for future automation upgrades.
Modern tool manufacturing relies heavily on advanced simulation. Evaluate the supplier's ability to provide digital twin or 3D simulation capabilities. Operators need to visualize the grinding path before executing physical cuts. Simulation prevents catastrophic collisions between the grinding wheel and the machine components. It drastically reduces physical setup times on the 4-axis platform. Operators can optimize feed rates and wheel angles virtually. This digital verification saves expensive carbide blanks from being scrapped during dangerous trial runs.
Standard end mills and drills are incredibly easy to program. Custom, complex geometries pose a much bigger challenge. Assess the supplier's engineering team's capacity to assist you. Do they offer custom macro programming? Can they provide specific post-processor configurations for highly specialized tool geometries? A reliable partner will actively help you develop grinding strategies for non-standard applications. They treat complex tool engineering as a collaborative effort rather than a post-sale afterthought.
Purchasing the equipment is only the beginning of the journey. The riskiest phase occurs during installation and operator handover. Mismanaged implementations lead to weeks of lost productivity. You must establish strict protocols for testing, training, and ongoing technical support.
Never accept delivery without a rigorous Factory Acceptance Test. This critical testing occurs at the supplier's facility before the machine ships. You should mandate a specific test-cut protocol.
Provide your own custom tool blanks and specific grinding wheel types.
Supply a proprietary drawing outlining your strict tolerance requirements.
Observe the machine completing a continuous batch run independently.
Verify the final dimensions and surface finishes using independent metrology equipment.
Do not let the machine leave their floor until it meets every requirement.
Evaluate the depth of the supplier’s handover process. A quick two-hour overview is wildly insufficient for complex machinery. Ask if they offer comprehensive, machine-side training. The curriculum should cover advanced software programming and physical wheel dressing. It must also detail preventative maintenance schedules. Well-trained operators prevent minor issues from becoming major mechanical failures. They also maximize the machine's daily output efficiency.
Machine downtime costs money every single hour. You need a legally binding Service Level Agreement (SLA). Identify the exact geographic location of their nearest service hub. Ask where they store their spare parts inventory. Review their guaranteed response times for critical downtime events. How fast can they ship a replacement spindle? How quickly can a technician arrive for axis recalibration? Fast, guaranteed support distinguishes a premium partner from a budget vendor.
After evaluating specifications and policies, you must verify their claims. An evidence-based audit process eliminates vendors who exaggerate their capabilities. Following a structured shortlisting process guarantees you partner with a legitimate manufacturer.
Mandate conversations with current users of the equipment. Ask the supplier for references running similar applications. Specifically, ask these reference customers about Mean Time Between Failures (MTBF). Inquire about the vendor's service responsiveness during emergencies. Do they actually honor their SLA response times? Hearing unfiltered feedback from actual users provides invaluable insight. It often reveals operational quirks not mentioned in polished sales pitches.
If possible, conduct a physical audit of the supplier’s assembly floor. Alternatively, you can commission a third-party inspector. Observe their quality control and calibration procedures firsthand. Look for climate-controlled assembly rooms. Verify they use laser interferometers for axis calibration. A messy, disorganized assembly floor usually indicates poor build consistency. A highly structured environment proves they take precision seriously.
The ultimate test is a live pilot run-off. Provide a complex, high-tolerance tool drawing to your shortlisted suppliers. Require them to program and grind it. Ask them to record the exact cycle time. They must provide the finished piece for your internal quality inspection.
Supplier Evaluation Matrix
Audit Category | Key Verification Action | Red Flags to Avoid |
|---|---|---|
Customer References | Interview past buyers on MTBF data | Refusal to provide contact details |
Facility Inspection | Check climate control & laser calibration | Disorganized or uncalibrated tooling |
Pilot Run-Off | Measure sample tool against internal CMM | Cycle times exceeding your standard limits |
Choosing the right partner is essentially an exercise in risk management and capability alignment. You are investing in long-term manufacturing stability. The ideal supplier offers transparent component sourcing, verifiable accuracy data, and robust post-installation support. They prioritize machine rigidity and provide powerful simulation software. They also stand by their product with strong service agreements.
We highly recommend initiating the evaluation process cautiously. Start by sending a Non-Disclosure Agreement (NDA) to a short list of three or four audited suppliers. Follow up by providing a standard test-part drawing. By relying on hard data and physical run-offs, you will confidently secure a machine capable of elevating your production capabilities.
A: Realistic lead times typically range from three to six months. This timeframe depends heavily on custom engineering requirements and global supply chain factors. Standard builds usually ship faster, while automated loaders extend delivery. Always ask suppliers directly for current timeline estimates.
A: You should request detailed CPK (Process Capability Index) data from past installations. Additionally, demand a pilot run-off using your own tool drawing. Perform an independent CMM (Coordinate Measuring Machine) inspection on the finished test grind before signing a purchase order.
A: For standard end mills, drills, and specific step tools, a 4-axis machine offers superior structural rigidity. It also delivers a significantly faster Return on Investment (ROI). Upgrading to a fifth axis adds unnecessary mechanical complexity if your tools do not geometrically require it.
A: Baseline expectations usually include a one-year warranty on mechanical and electronic components. However, premium suppliers often extend coverage. It is highly important to negotiate extended warranty terms specifically for the grinding spindle, as it undergoes the most extreme operational wear.
