Moving a high-precision manufacturing asset from the shipping dock to the production floor represents a critical transition phase. You have purchased state-of-the-art equipment to achieve first-part production efficiently. However, micron-level precision equipment remains highly vulnerable during this period. Mishandling during offloading can cause chassis distortion easily. It also exposes the equipment to severe spindle damage. Placing it on an inadequate foundation leads to immediate calibration loss. Plant managers and production engineers need an evidence-based framework for site preparation. This article provides exactly that framework. We will guide you through best practices to prevent commissioning delays. You will learn how to verify environmental controls properly. We will explain how to manage contractors and prepare your infrastructure. By following these steps, you protect your capital investment heavily. You also ensure immediate operational readiness upon installation. Proper preparation turns a risky logistical event into a highly controlled engineering process. It bridges the gap between procurement and profitable manufacturing seamlessly.
Proper 4 axis CNC tool grinding machine handling requires specialized rigging equipment; forklift errors can permanently damage the machine geometry.
Foundation preparation must account for vibration isolation and structural load-bearing minimums to guarantee grinding tolerances.
Climate control and utility routing (clean power, dry air) must be validated prior to the arrival of the installation technicians.
Retaining factory transit brackets until the machine is in its final position is mandatory to protect linear guideways and ball screws.
A poorly planned delivery creates cascading operational failures rapidly. Rigging crews charge extremely high hourly rates. If they wait for a cleared pathway, your setup expenses multiply quickly. Worse, improper placement can void manufacturer warranties completely. It also delays your production schedules significantly. Let us look closely at precision loss. Lifting a CNC grinding machine incorrectly stresses the cast iron base. Placing it on an unlevel floor distorts the machine geometry. Placing it on an un-cured floor creates similar distortion issues over time. This distortion translates directly to poor surface finishes. It causes severe tool runout on finished parts. Your micron-level tolerances disappear instantly.
We define a successful installation using strict engineering criteria. The machine must achieve factory-specified tolerances within 48 hours of final placement. Achieving this requires rigorous pre-delivery planning. You cannot treat site readiness as an afterthought. Every physical movement carries immense operational risk. The machine bed possesses structural memory. Micro-stresses introduced during clumsy handling manifest later. They show up as intermittent tolerance errors during heavy cuts. You might spend weeks troubleshooting software parameters uselessly. Often, the true root cause remains mechanical distortion from poor handling. Proper planning eliminates these hidden variables completely. It guarantees your equipment performs exactly as specified.
Your concrete floor serves as the absolute anchor for precision. You must verify the concrete depth before scheduling delivery. Check the PSI rating and the internal rebar structure carefully. These elements support the concentrated static load of heavy equipment. A weak foundation shifts subtly under sustained weight. This shifting destroys geometric alignment over months of operation. Next, you must implement strict vibration mitigation strategies. We recommend using isolated foundation pads. Alternatively, use specialized elastomeric anti-vibration mounts under the leveling feet. Wedge mounts also provide excellent adjustability.
Never place the grinder near heavy stamping presses. Keep it far away from high-traffic forklift aisles. Massive HVAC compressors also generate problematic frequencies. Background vibration ruins grinding accuracy continuously. It creates visible chatter marks on finished tools. Leveling tolerances represent another critical foundational factor. Technicians measure these strict tolerances in millimeters per meter (mm/m). Strict leveling ensures the structural rigidity functions correctly. It also guarantees optimal coolant flow and drainage away from the cutting zone.
Parameter | Minimum Requirement | Risk of Non-Compliance |
|---|---|---|
Concrete Thickness | Typically 150mm - 200mm minimum | Foundation cracking under dynamic load |
Concrete Strength | Minimum 3,000 PSI (20 MPa) | Settling and subsequent chassis twist |
Vibration Isolation | Trenching or elastomeric wedge mounts | Surface chatter on finished tools |
Leveling Tolerance | 0.01 mm/m to 0.02 mm/m | Coolant pooling and axis binding |
Common mistakes include pouring new concrete too late. Concrete requires adequate curing time before bearing heavy loads. Engineers standardly recommend a 28-day cure for new isolated pads. Rushing this curing process guarantees future settling issues. It forces you to re-level the machine repeatedly.
Proper 4 axis CNC tool grinding machine handling requires deep understanding of Center of Gravity (CoG). Heavy casting grinders feature uneven weight distribution intentionally. If riggers ignore the CoG, the equipment can tip over easily. You must exclusively use factory-designated lifting eyes. Factory-designated forklift channels provide the only safe alternative. Never improvise lifting points during offloading. Using synthetic slings around sensitive sheet metal components destroys them instantly. It also misaligns the internal structure.
Furthermore, transit hardware plays a highly protective role. All shipping brackets securing the X, Y, Z, and rotary axes must remain locked. Keep them fully locked until the machine sits completely grounded. It must also be leveled before removal. Early bracket removal exposes ball screws to severe shock damage. The internal guideways rely entirely on these brackets during transit vibrations. You must also vet your third-party rigging contractors thoroughly. Ensure they possess specific experience moving precision CNC equipment. Standard warehouse movers lack the necessary nuance.
Always verify their heavy-machinery insurance coverage before they arrive. Demand proof of recent calibration for their lifting scales. Follow this contractor vetting checklist carefully:
Request references from other precision machine shops in your region.
Verify minimum liability coverage matching the full equipment replacement value.
Review their proposed lift plan and equipment list step by step.
Confirm they own machinery skates suitable for delicate epoxy floors.
Ensure they use non-marking polyurethane rollers to protect your facility.
Clean utilities dictate long-term machine reliability. First, establish dedicated, voltage-stabilized electrical power lines. Voltage fluctuations wreck havoc on sensitive CNC controllers. Phase imbalances damage expensive spindle drives over time. You need perfectly clean power to maintain axis synchronization. Many facilities install isolation transformers to filter out facility line noise. Grounding loops also cause intermittent controller faults. Establish a dedicated earth ground specifically for this equipment.
Next, evaluate your pneumatics and coolant filtration systems. Industrial-grade clean, dry air is absolutely necessary. You must install refrigerated air dryers directly in your supply line. Experts recommend adhering strictly to ISO 8573-1 air quality standards. Dry air protects delicate spindle purges. It operates pneumatic clamps safely and consistently. Moisture in the air lines causes internal corrosion rapidly. It also freezes inside pneumatic valves during sudden pressure drops.

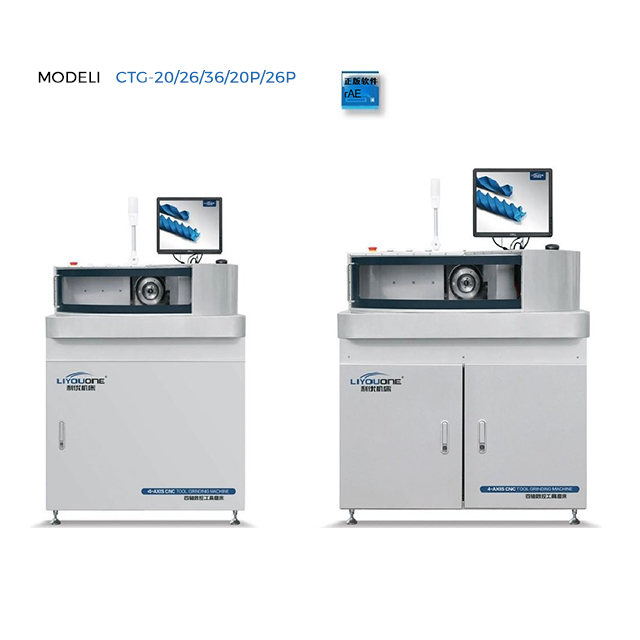

Thermal stability is equally critical for the CTG tool grinder. You must control the ambient temperature strictly. Thermal expansion impacts 4-axis interpolation accuracy immediately. Even a five-degree ambient temperature swing ruins tight tolerances. Keep the manufacturing environment stable 24/7. Do not place the equipment directly under HVAC supply vents. Cold drafts cause localized frame contraction. Linear scales read positioning errors when the casting expands or contracts.
Finally, plan your clearance zones carefully before placement. The physical footprint extends far beyond the machine dimensions. You need adequate space for future maintenance access. Electrical cabinet doors require a full swing radius. Mist extraction units demand extra overhead floor space. Coolant tank removal requires clearance in the rear.
Maintain a minimum one-meter perimeter around all electrical access panels.
Provide overhead clearance for future crane maintenance on the spindle.
Route cables away from high-traffic footpaths to prevent trip hazards.
Ensure adequate space for swarf bin extraction and regular filter replacements.
Documentation drives a flawless delivery process. Request the exact footprint diagram from your supplier early. You also need the utility connection map. Ask for the official rigging manual simultaneously. Secure these documents at least 30 days prior to delivery. This lead time allows you to route electrical drops properly. It gives you time to lay pneumatic piping securely. It also helps you map out the exact path from the loading dock to the foundation pad.
When the truck arrives, initiate a strict inspection protocol immediately. Examine the tilt and shock indicators on the crating first. Do this before signing the official Bill of Lading. If you spot triggered indicators, document them with photographs. Record everything on the delivery receipt clearly in writing. This protects you against hidden transit damage. It streamlines any potential freight insurance claims later. Never let the truck driver rush this critical inspection step.
Your actionable next step involves scheduling the commissioning technician. Only schedule this factory-certified expert after confirming complete site readiness. The plant facility manager must sign off on the completed checklist first. Bringing a technician to an unprepared site wastes money. It stalls your production timeline unnecessarily. The technician needs power, air, and coolant ready to go.
Site-readiness remains a rigorous engineering task. It is not just a standard logistical event. Every utility connection influences your final product quality. Every foundation pad dictates long-term accuracy. Controlling handling protocols protects your massive capital investment. Controlling environmental factors is the only reliable way to ensure immediate operational readiness. Proper preparation eliminates costly commissioning delays entirely.
You avoid damaging precision guideways during offloading. You prevent electrical faults before they occur. Take full control of your installation environment today. Download a technical site-preparation PDF to guide your maintenance team. Discuss the layout requirements actively with your production managers. Alternatively, contact your application engineering team directly. Have them review your specific facility layout in detail. Doing this ensures your transition to first-part production proceeds flawlessly.
A: A precision grinder requires a strict thermal equalization period before operation. Typically, it needs 24 to 48 hours to acclimate. This timeframe depends heavily on transit temperatures. It also depends on your climate-controlled environment. Powering on a cold machine causes thermal shock. This introduces severe accuracy errors and potential condensation issues inside the electrical cabinet.
A: Moving these machines requires highly specialized equipment. A standard warehouse forklift rarely meets the specific weight capacity requirements. Additionally, you often need extended forks to reach the structural lifting points safely. Improper forklift use risks tipping the equipment. It can also permanently twist the cast iron bed.
A: Removing these brackets prematurely introduces severe risk. The shipping brackets lock the heavy axes securely in place. Without them, the linear guides absorb damaging shock loads. The ball screws also take impact damage during final positioning. Always leave transit hardware attached until the machine sits fully level.
A: Yes, establishing a dedicated grounding rod represents standard electrical noise mitigation. Sensitive CNC controllers require an isolated ground. This prevents data corruption. Facility electrical noise from welders causes intermittent controller faults. A proper ground eliminates these electrical interference issues completely.
