In the ever-evolving landscape of modern manufacturing, precision engineering and automation have become the cornerstones of industrial success. The Computer Numerical Control (CNC) grinding machine stands as a testament to these advancements, revolutionizing the way materials are shaped and finished. These machines play a critical role in producing high-precision components across various industries, from automotive to aerospace. Understanding what a CNC grinding machine is and how it operates is essential for anyone involved in manufacturing or engineering.
CNC grinding machines are sophisticated devices that utilize a rotating grinding wheel to remove material from a workpiece, achieving fine finishes and precise dimensions. With the integration of computer control systems, these machines have significantly improved the efficiency and accuracy of grinding processes. The importance of these machines cannot be overstated, as they contribute to the production of parts that require tight tolerances and high surface quality.
As industries strive for perfection in component manufacturing, the reliance on Advanced CNC grinding machines has grown exponentially. These machines not only enhance productivity but also ensure consistency in the quality of the products manufactured.
A CNC grinding machine is a high-precision tool that uses a rotating grinding wheel to remove material from a metal workpiece to create a desired shape or finish. The term "CNC" stands for Computer Numerical Control, indicating that the machine is controlled by programmable software rather than manual operation. This automation allows for precise control over the grinding process, resulting in improved accuracy and efficiency.
These machines are essential in the manufacturing sector, particularly in the production of tools, automotive components, and aerospace parts. CNC grinding machines can handle complex shapes and tight tolerances that are difficult to achieve with conventional machining methods. The integration of CNC technology has enabled these machines to perform complex grinding operations with ease, including contouring, profiling, and threading.
To fully grasp how CNC grinding machines function, it is important to understand their main components and mechanisms. The primary components include the grinding wheel, workpiece, spindle, bed, and the CNC control unit.
The grinding wheel is the cutting tool of the machine, composed of abrasive particles bonded together. It rotates at high speeds to grind away material from the workpiece. The selection of the appropriate grinding wheel is crucial and depends on factors such as the material of the workpiece, the desired surface finish, and the cutting conditions. Advances in abrasive technology have led to the development of wheels with superior cutting performance and longer life spans.
The workpiece is the item being machined, and it must be securely held in place to ensure precision during the grinding process. Workholding devices, such as chucks, fixtures, or magnetic tables, are employed to immobilize the workpiece. Proper workholding is essential to prevent vibrations and movement that can lead to defects or inconsistencies in the final product. In some applications, customized fixtures are designed to accommodate unique shapes or complex geometries.
The spindle is the rotating axis of the machine that holds and drives the grinding wheel. It must maintain high rotational speeds with minimal runout to ensure the precision of the grinding operation. Advanced spindles are designed with hydrostatic or hydrodynamic bearings, providing stability and reducing friction. The rigidity and balance of the spindle are critical factors that affect surface finish and dimensional accuracy.
The machine bed provides the foundation for all other components, designed to be rigid and stable to absorb vibrations and support the weight of the machine elements. It is typically made from cast iron or polymer composites. The table, mounted on the bed, moves the workpiece in different directions as programmed, allowing for precise positioning relative to the grinding wheel. High-precision linear guides and ball screws are used to ensure smooth and accurate movements.
The CNC control unit is the brain of the machine, interpreting programmed instructions and controlling the movement of the grinding wheel and workpiece. Modern CNC systems offer user-friendly interfaces, graphical simulations, and advanced features like adaptive control and error detection. They allow for the storage of multiple programs, making it easy to switch between different grinding operations and reducing setup times.
CNC grinding machines come in various types, each designed for specific applications. Understanding the differences helps in selecting the right machine for a particular task, optimizing both performance and cost-effectiveness.
Cylindrical grinders are used to shape the external surface of cylindrical workpieces. They can perform various grinding operations such as plunge, traverse, and angular grinding. These machines are essential in the production of shafts, axles, and spindles, where concentricity and surface finish are critical. Some advanced cylindrical grinders incorporate multiple wheels for different grinding tasks, enhancing versatility.
Surface grinders are used to produce smooth finishes on flat surfaces. They work by moving the workpiece back and forth under the grinding wheel or the wheel over the workpiece. Surface grinders are commonly used in toolrooms and production shops for grinding flat plates, machine tables, and die blocks. Precision infeed controls allow for accurate depth of cut, ensuring consistent surface quality.
Tool and cutter grinders are specialized machines used for sharpening cutting tools such as milling cutters, reamers, and drills. With CNC capabilities, these machines can produce complex tool geometries with high precision. They are indispensable in tool manufacturing and reconditioning, extending the life of cutting tools and ensuring optimal performance. Features like automatic tool measurement and compensation enhance efficiency.
Centerless grinders are used for high-volume production of parts without the need for centers to hold the workpiece. The workpiece is supported between a grinding wheel and a regulating wheel, allowing for rapid material removal and consistent sizing. This type of grinding is ideal for components like pins, rods, and bushings.
CNC grinding machines offer several advantages over traditional grinding methods, making them a vital part of modern manufacturing.
The computer control in CNC grinding machines allows for micron-level precision, ensuring consistent and accurate results. This level of precision is essential in industries where component tolerances are extremely tight. The ability to produce intricate shapes with high repeatability reduces the need for secondary finishing operations.
Automation reduces the need for manual intervention, allowing machines to operate continuously with minimal supervision. This leads to higher production rates and more efficient use of labor resources. CNC machines can also quickly switch between different jobs, reducing downtime and increasing flexibility in production scheduling.
CNC grinding machines can perform a variety of grinding operations on different materials. By changing the grinding wheel and adjusting the program, manufacturers can adapt to different products without significant downtime. This versatility makes CNC grinders suitable for both small batch and mass production environments.
Once a program is set, CNC machines can repeat the same operation consistently, reducing variability in the manufacturing process. This is crucial for maintaining quality standards and meeting regulatory requirements. Consistency also enhances customer satisfaction by ensuring that parts meet specifications every time.
Precision machining reduces material waste by minimizing errors and rework. Efficient use of materials leads to cost savings, especially when working with expensive or scarce resources. Additionally, optimized grinding processes can extend tool life and reduce the need for frequent wheel replacements.
CNC grinding machines are utilized in a wide range of industries due to their ability to produce high-precision components.
In the automotive sector, CNC grinding machines are used to manufacture engine components, transmission parts, and other critical components requiring tight tolerances. The demand for fuel-efficient vehicles has increased the need for precise and lightweight parts. Components like camshafts, crankshafts, and gear parts are commonly ground to achieve the necessary surface finishes and dimensional accuracy.
The aerospace industry relies heavily on CNC grinding for components such as turbine blades, landing gear parts, and structural components. The stringent safety and performance standards in aerospace make precision machining essential. Materials like titanium and superalloys, which are difficult to machine, are often processed using CNC grinding to achieve the required specifications.
CNC grinding machines produce medical devices and implants that require intricate shapes and high surface finishes. Orthopedic implants, surgical instruments, and dental components are commonly manufactured using CNC grinding technology. The ability to produce complex geometries with biocompatible materials contributes to advancements in patient care.
In tool and die making, CNC grinders are used to create molds, dies, and various cutting tools. The ability to produce complex shapes with high precision is invaluable in this industry. CNC grinding contributes to the production of tools with longer life spans and better performance, influencing the quality of the products they help manufacture.
The energy sector, including oil and gas and renewable energy, utilizes CNC grinding for components like valves, pumps, and turbine parts. The harsh operating environments require parts with exceptional durability and precision. CNC grinding ensures the components meet these demanding requirements.
The field of CNC grinding has seen significant technological advancements that have further enhanced its capabilities.
The development of 5-axis CNC grinding machines has opened up new possibilities in machining. These machines can move the grinding wheel and workpiece along five different axes simultaneously, allowing for the production of complex shapes and contours that were previously difficult or impossible to achieve. This capability is particularly beneficial in tool manufacturing and the production of aerospace components with intricate geometries.

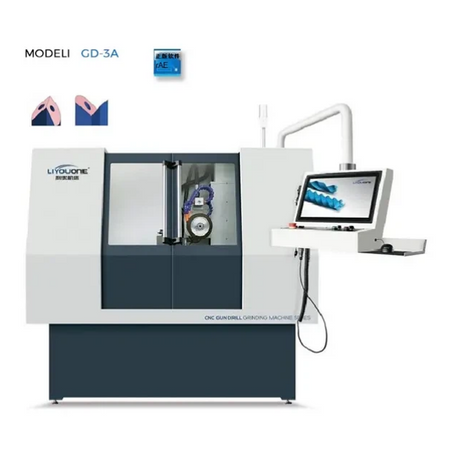

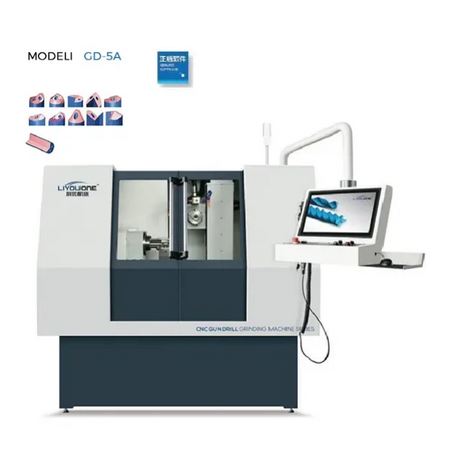

An example of such innovation is the Automatic CNC grinding machine, which offers enhanced flexibility and precision in tool manufacturing. The ability to machine multiple features in a single setup reduces cycle times and increases productivity.
The integration of automation and robotic systems has increased the efficiency of CNC grinding machines. Automated loading and unloading systems reduce downtime and allow for lights-out manufacturing, where machines operate unattended during off-hours. Robotic arms can handle repetitive tasks with high precision, freeing up human operators for more complex responsibilities.
Modern CNC machines are equipped with advanced software that allows for detailed simulations and modeling of the grinding process. Operators can visualize the machining operations before actual production, reducing errors and material waste. Simulation tools help in optimizing tool paths, selecting appropriate cutting parameters, and predicting potential issues.
Adaptive control systems monitor the machining conditions in real-time and adjust parameters such as feed rate and wheel speed accordingly. This ensures optimal grinding conditions, prolongs tool life, and enhances surface quality. Adaptive controls can also detect anomalies like wheel wear or workpiece deflection, initiating corrective actions or alerts.
Advancements in spindle technology and abrasive materials have enabled high-speed grinding, which increases material removal rates and reduces cycle times. High-speed grinding requires precise control and specialized equipment to handle the increased forces and thermal effects. The benefits include improved surface finishes and the ability to grind harder materials efficiently.
Selecting the right CNC grinding machine manufacturer is crucial for acquiring a machine that meets specific requirements and provides reliable performance.
A reputable manufacturer should have a proven track record of producing high-quality machines that are durable and reliable. It's important to assess the build quality, components used, and the level of precision the machines can achieve. Certifications and compliance with international standards indicate a commitment to quality.
Manufacturers that invest in research and development are likely to offer machines with the latest technology. Innovations such as advanced control systems, energy efficiency, and enhanced automation can provide a competitive edge. Access to cutting-edge technology ensures that your manufacturing processes remain efficient and up-to-date.
Partnering with a leading CNC grinding machine manufacturer ensures access to comprehensive support and expertise. Their experience can be invaluable in selecting the right machine and optimizing its use.
Comprehensive after-sales support, including training, maintenance, and technical assistance, is essential. Manufacturers that offer robust support can help minimize downtime and keep operations running smoothly. Availability of spare parts, prompt service responses, and preventative maintenance programs are factors to consider.
Every manufacturing operation has unique requirements. Manufacturers that offer customization options can tailor machines to specific applications, enhancing efficiency and performance. Customizations may include specialized tooling, software modifications, or integration with existing systems.
While quality and features are paramount, cost considerations cannot be overlooked. Evaluate the total cost of ownership, including initial investment, operating costs, and maintenance expenses. Some manufacturers offer financing options or leasing arrangements, making it easier to acquire advanced machinery.
When selecting a CNC grinding machine, several factors should be considered to ensure the machine aligns with operational needs.
Different machines are designed to handle specific materials. It's important to choose a machine capable of grinding the materials used in your production, whether they are metals, composites, or ceramics. Considerations include the hardness, abrasiveness, and thermal properties of the materials.
Assess the level of precision required for your products. Machines with higher accuracy may come at a greater cost but are necessary for components with tight tolerances. High-precision machines may include features like temperature control, vibration damping, and advanced feedback systems.
High-volume production may require machines with greater automation capabilities and faster cycle times. Consider machines that can operate continuously and integrate with other automated systems. Batch size, job variability, and setup times are factors that influence machine selection.
Evaluate the space available in your facility and the infrastructure required to support the machine. This includes power supply, cooling systems, and environmental controls. Machines with smaller footprints or modular designs may be advantageous in space-constrained environments.
Consider the skill level of the operators who will be using the machine. User-friendly interfaces and intuitive controls can reduce the learning curve. Manufacturers often provide training programs to enhance operator proficiency.
Proper maintenance is essential for the longevity and performance of CNC grinding machines.
Routine inspections can identify wear and tear on components before they lead to machine failure. Checking spindles, bearings, and lubrication systems should be part of regular maintenance schedules. Vibration analysis and thermal imaging can detect issues not visible to the naked eye.
Keeping the machine clean prevents the buildup of debris that can affect performance. Coolant systems should be maintained to prevent contamination and bacterial growth. Proper lubrication reduces friction and wear on moving parts, extending the machine's lifespan. Following the manufacturer's recommended lubrication schedule is crucial.
Updating the machine's software ensures it runs efficiently and securely. Manufacturers often release updates that improve performance, fix bugs, or add new features. Staying current with software updates can enhance the machine's capabilities and protect against cybersecurity threats.
Well-trained operators can prevent errors that lead to machine damage. Ongoing training helps operators stay current with best practices and technology advancements. Training should cover not only machine operation but also maintenance procedures and safety protocols.
Maintaining an inventory of critical spare parts can minimize downtime in case of component failure. Collaborate with the manufacturer to identify parts that may require replacement and establish a procurement plan.
The CNC grinding industry continues to evolve, with emerging trends shaping its future.
Artificial Intelligence (AI) and machine learning are beginning to impact CNC grinding. AI can optimize grinding processes by analyzing data and making real-time adjustments for improved efficiency. Predictive analytics can foresee maintenance needs, reducing unexpected downtime.
The integration of IoT allows machines to communicate within a manufacturing network. This connectivity facilitates predictive maintenance, remote monitoring, and overall smarter factory operations. Data collected can inform decision-making, enhance quality control, and streamline production workflows.
New abrasive materials and wheel designs are being developed to enhance grinding efficiency and surface finishes. Innovations in superabrasives like cubic boron nitride (CBN) and diamond wheels contribute to faster and more precise grinding. These materials enable the grinding of harder and more brittle materials with reduced heat generation.
There is a growing focus on making CNC grinding processes more sustainable. This includes reducing energy consumption, recycling coolant fluids, and minimizing material waste through more efficient grinding practices. Manufacturers are developing machines with energy-saving features and exploring environmentally friendly materials.
Combining CNC grinding with additive manufacturing (3D printing) opens new possibilities for producing complex parts efficiently. Hybrid machines that can add and remove material allow for innovative design approaches and repair solutions.
CNC grinding machines have become an indispensable tool in modern manufacturing, providing the precision and efficiency required to produce high-quality components across various industries. Understanding their functionality, advantages, and applications is essential for making informed decisions in the manufacturing process. The integration of advanced technologies continues to expand their capabilities, driving innovation and competitiveness.
As technology continues to advance, these machines will become even more capable, incorporating AI, IoT, and other innovations that further enhance their performance. By selecting the right CNC grinding machine and maintaining it properly, manufacturers can stay competitive in a rapidly evolving market. Investing in advanced machinery and keeping abreast of industry trends will position businesses to meet the challenges of the future.
Investing in reliable equipment, such as the Automatic CNC grinding machine, enables businesses to meet the increasing demands for precision and efficiency. With the right equipment and knowledge, companies can harness the full potential of CNC grinding technology, driving innovation and growth in their respective industries.
